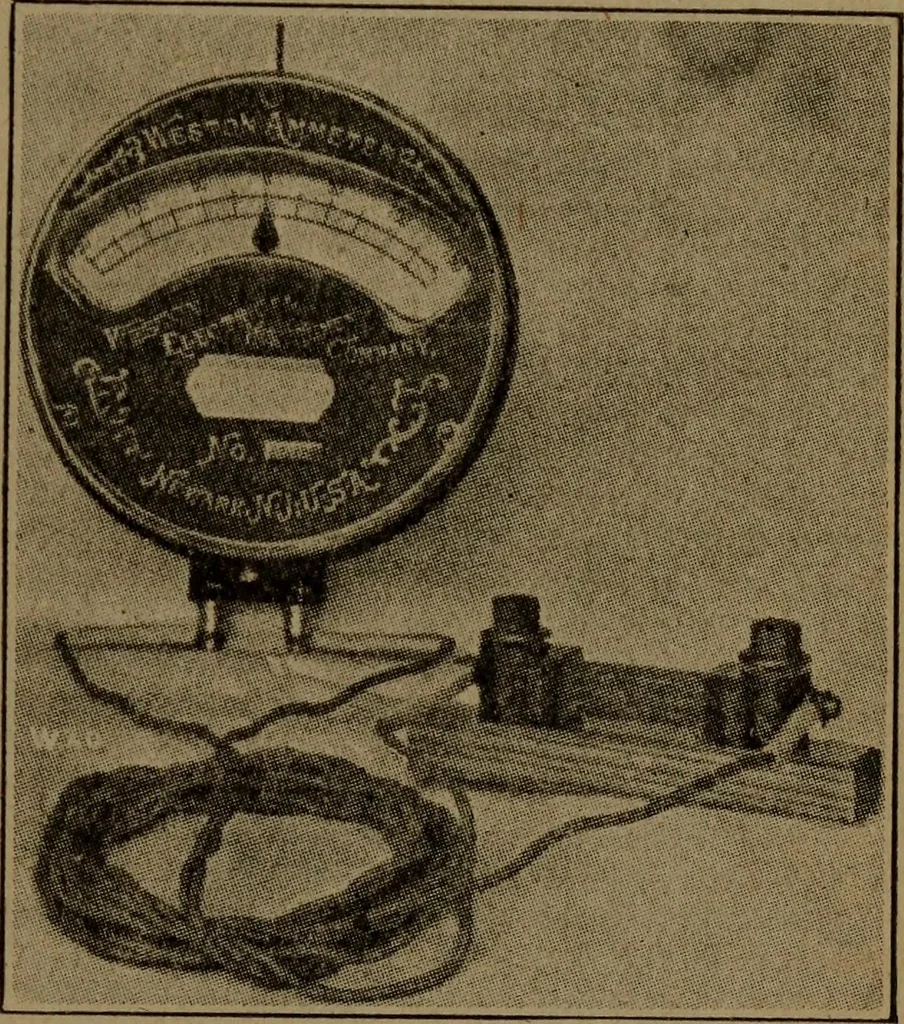

e of the current.Instruments used onswitchboards as a rulehave their shunts con-nected directly in theline, and small leadsrun from the terminalsof this shunt to themoving system, whichis mounted in a conven-ient place on the faceof the board. An instru-ment and its shunt arechown in Fig. 92.… … Fig. 92 Instruments Whose Operation Depends Upon Electro-ChemicalEffect of a Current 132. Electrolysis.—If two conducting plates, such as plati-num, be immersed in acidulated water and a current of elec-tricity be passed through the solution from one plate to th^other, the water will be decomposed…
