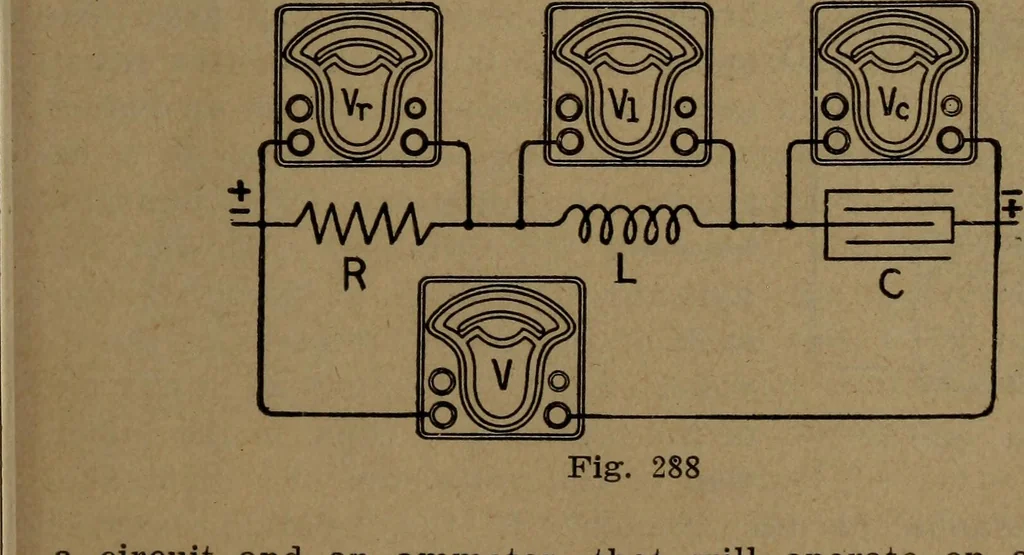

= .1319The admittance may now be obtained by substituting in equa-tion (147), which gives Y= V (.1983)2+ (.1319)2 :V .039 323 + .017 398 = V .056 72= .238 mhoThe impedance is equal to the reciprocal of the admittance, or 1 Z = = 4.20 .238 . Ans. 4.20 ohms. 390. Phase Relation of the Current and… … Fig. 288 a circuit and an ammeter, that will operate on alternatingcurrent, may be connected in the circuit at any point and itwill indicate the current that exists in the circuit. A voltmeter (V) may be connected across the entire circuit,as shown in the figure, and it will indicate the drop in…
