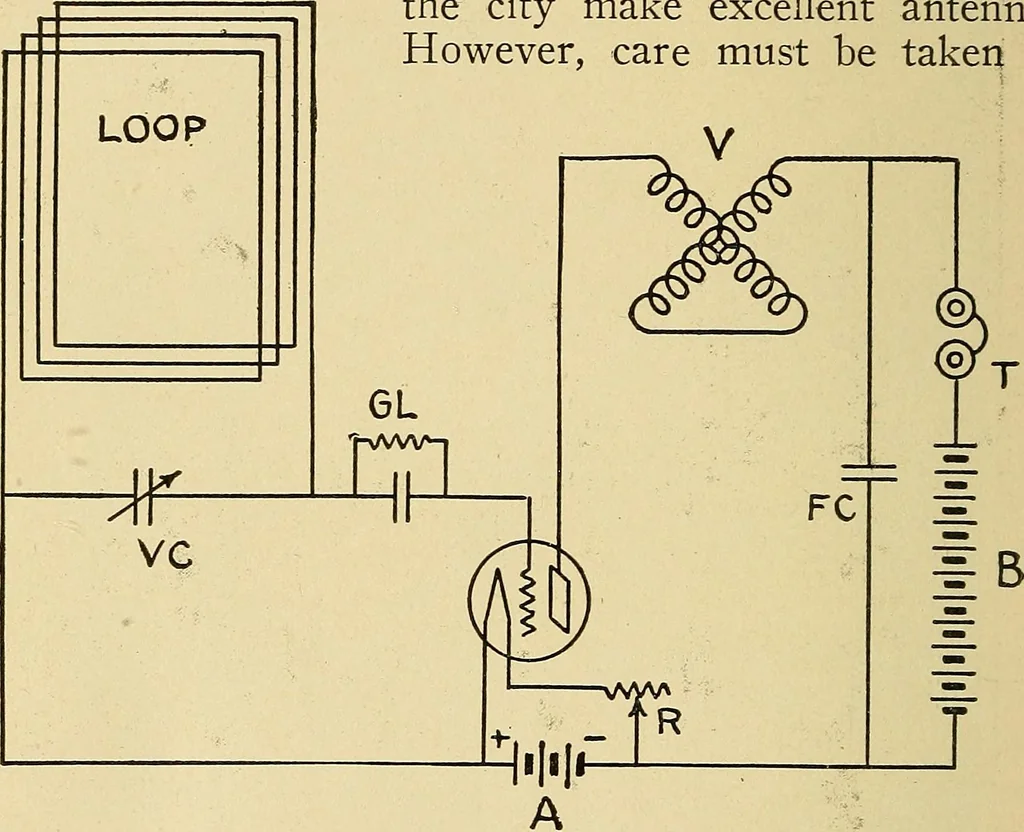

ung back and 152 RADIO FOR EVERYBODY forth in a room or placed behind the picture mouldingso as to be out of sight. We know, of a man whouses an antenna for receiving from the Newark broad-casting station at a distance of 250 miles, and, on oc-casion, from Pittsburgh, some 650 miles away. The… … Simple vacuum tube hook-up for use with a loop antenna.Note that VC is a variable condenser; GL—grid leak; V—variometer acting as the feed back inductance; T—tele-phone receivers; B—*B or plate battery; FC—fixed con-denser; K—rheostat for filament current; A—filament battery.This arrangement will…
