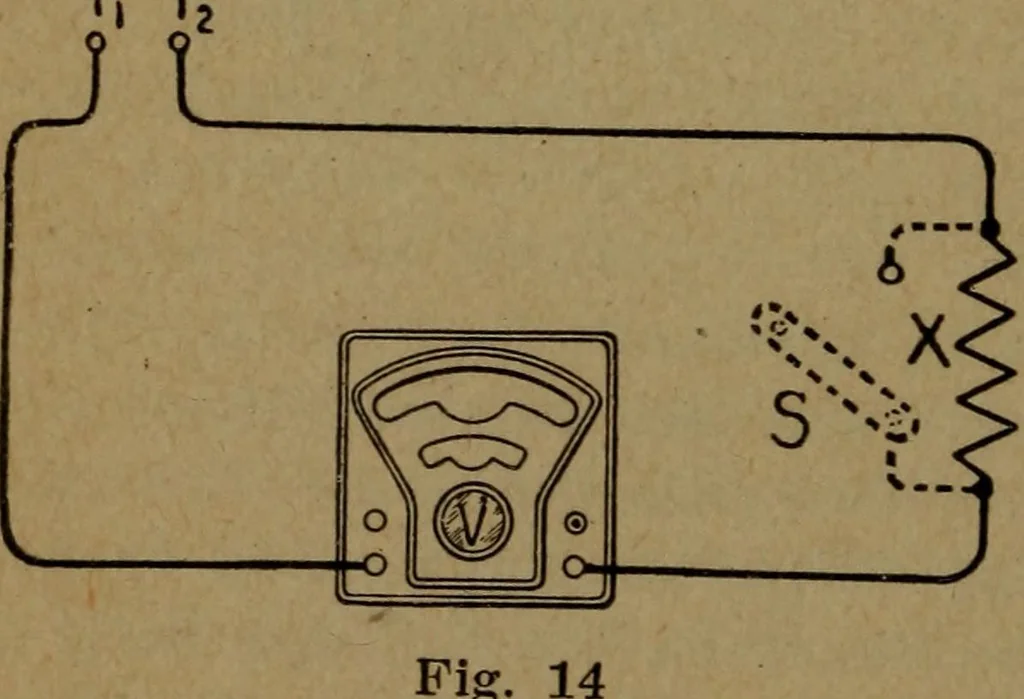

lts. What was the resistance of (X) ? 48 PEACTICAL APPLIED ELECTEICITY Solution.—Since the drop over the resistance (X) was twicethat over the standard, the resistance of (X) must be twicethat of the standard, or X = 2 X 10 = 20 Ans. 20 ohms.Substituting in equation (57) we have 10 X 10X=: = 20… … the resistance to be meas-ured and (V) is a directreading voltmeter. Whenthe voltmeter is con-nected as shown by thedotted line, the resistance(X) is not in series withit between the terminals(Ti) and (T2) and thevoltmeter indicates the., ^ .„,^ , . , „„ *^^^^ pressure between the two terminals.…
