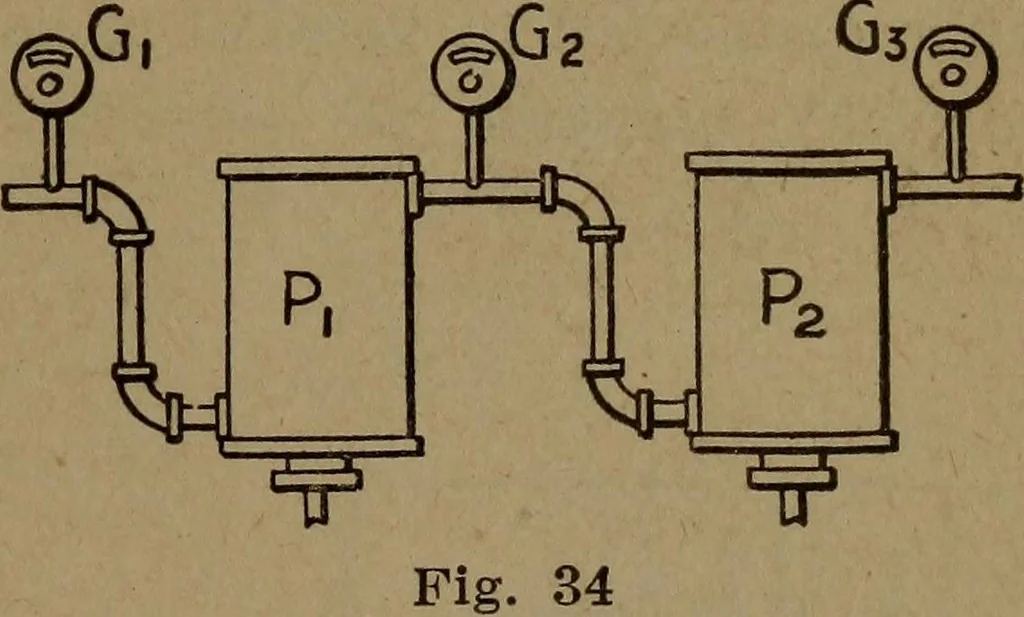

TTERIES 71 combination will have an e.m.f. of (ne) volts. The internalresistance of the battery will be equal to (nr) ohms where(r) is the internal resistance of each cell. If the externalresistance or the resistance of the circuit to which the batteryis connected is (R) ohms, then the current… … force acting in the circuit. Fig. 83 sho^\rf three cells con-nected in series and the battery thus formed connected toa resistance (R). Fig. 34 shows a hydraulic analogy similar to the connectionof cells in series. The pumps (Pi) and (P2) are so arrangedthat their pressures are added, the total…
