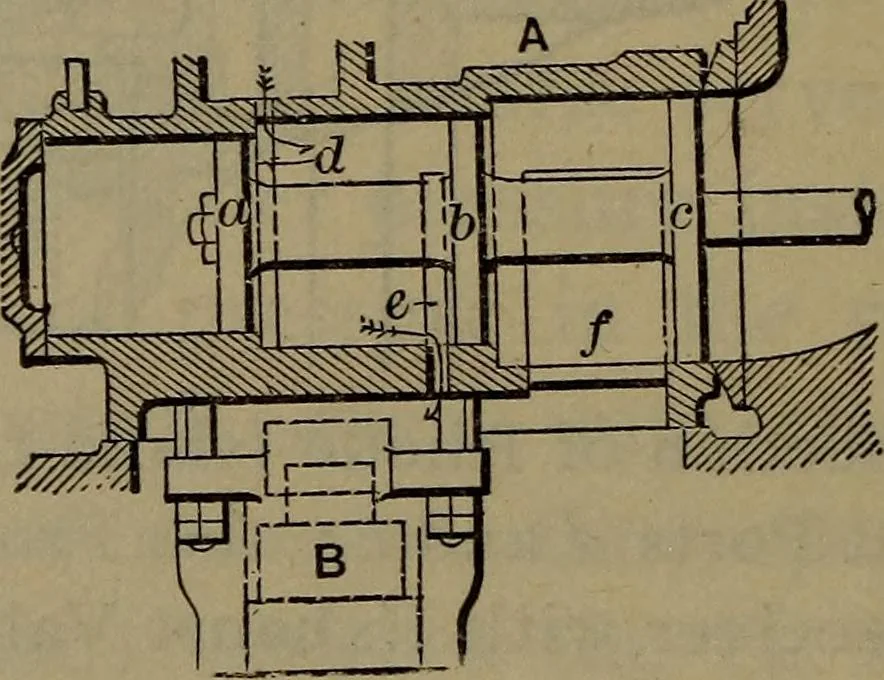

also a front viewof a portion of the receiver with the exhaust valve; in Fig.354, which shows a side section of the same while runningcompound, and Fig. 355, which shows it while running simple.The intercepting valve being in any position as in Fig. 354,and the exhaust valve closed as in the same… … Fig. 355« Side Section Rhode Island LocomotiveIntercepting Valve, Running Non-Compound. the usual manner, and also through the pipe D into the inter-cepting valve A, causing the piston to move into the positionshown in Fig. 355. In this position the receiver is closed tothe L. P. cylinder by the…
