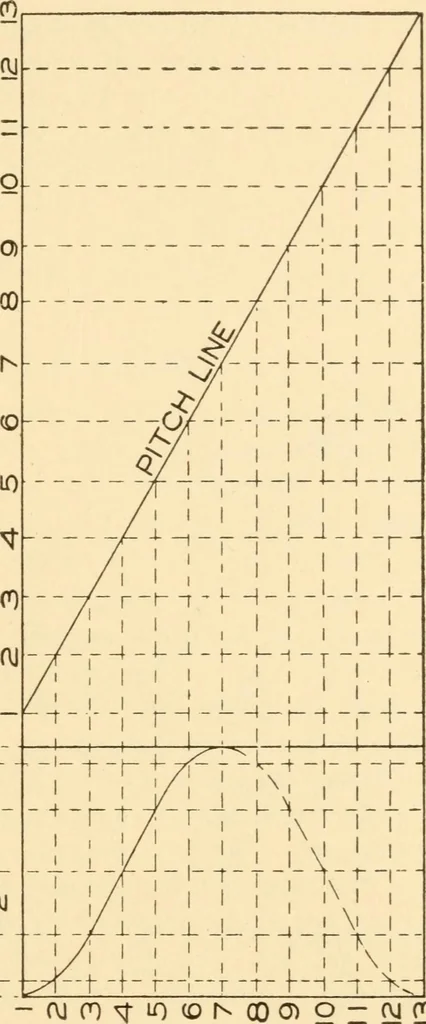

- (Vi (n which the cam works, to a semicircle or straight angle. 2 = 44/21 X, assuming tt to be 3 1/7. X, or the radius, = 2/44/21 = 2x21/44 =1 42/44in., or nearly i. 180 A PRACTICAL COURSE IN We assume ^f as being most convenient. With thisradius draw the base circle C, and construct tangentsupon…
