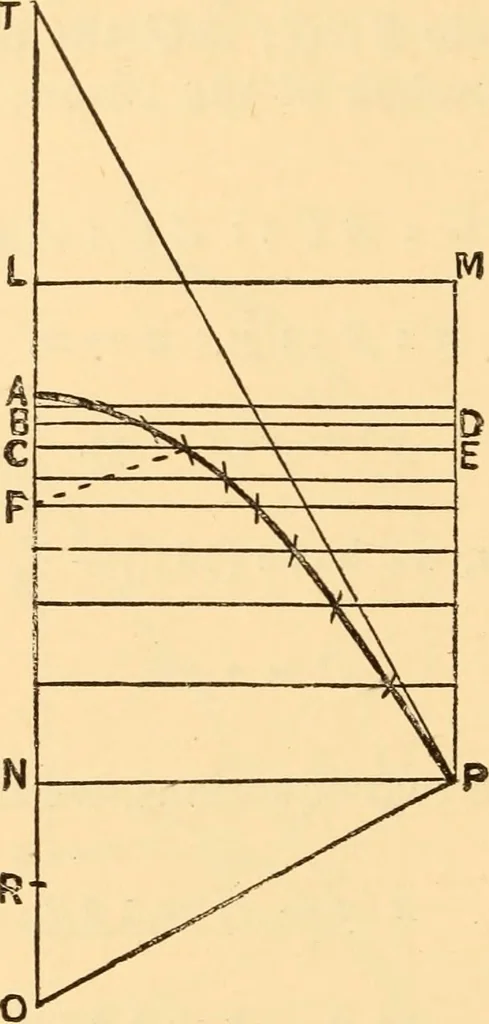

\n R\ make A L andA F each equal to NR ; then L M, drawn perpendicular toTO, will be the directrix. Parallel to LM draw the linesBD, CE, etc., at discretion. Then with the distance B L for 504 THE PARABOLA. radius, and on i^ as a centre, mark the line B D with an arc;the intersection of the arc and… … Fig, 3ro, line from /^ as a centre by a radius equal to the perpendicu-lar distance between that line and L M, the directrix. Thena curve traced through the points of intersection thus ob-tained will be the required parabola. 470.—Parabola: De§cribed from Orc1iiiate§.—With agiven base, NP {Fig.…
