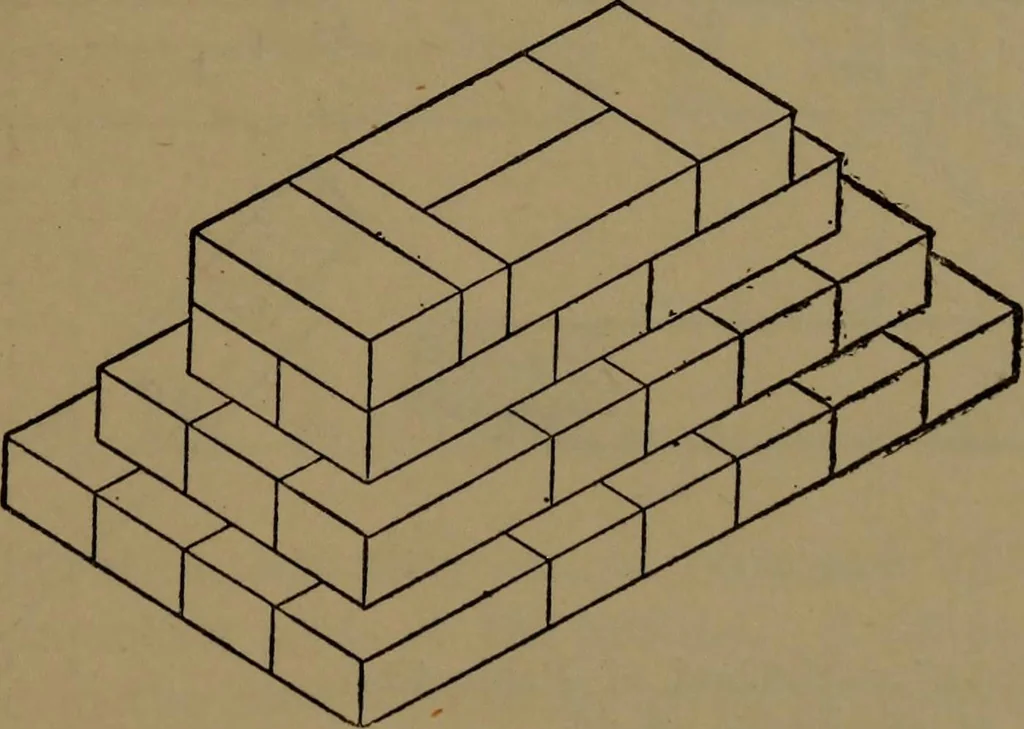

INS. 12 3 6 3 O NATURAL SCALEFig. 165.—Isometric Scale. true representation ; or, more accurately, the natural scale is tothe isometrical as 1 to y f or, roughly, as 11 to 9. In thismethod the object is supposed to be tilted up to show threefaces; or, taking a cube as best illustrating the… … Fig. 1G6.—Example of Isometric Projection. placed so that a direct line from the eye passes diagonalTythrough the cube as shown in shaded sketch (Fig. 162), orgeometrically by the outline (Fig. 163). Certain terms areused in describing the different parts of the figure ; they are—A A, isometric…
