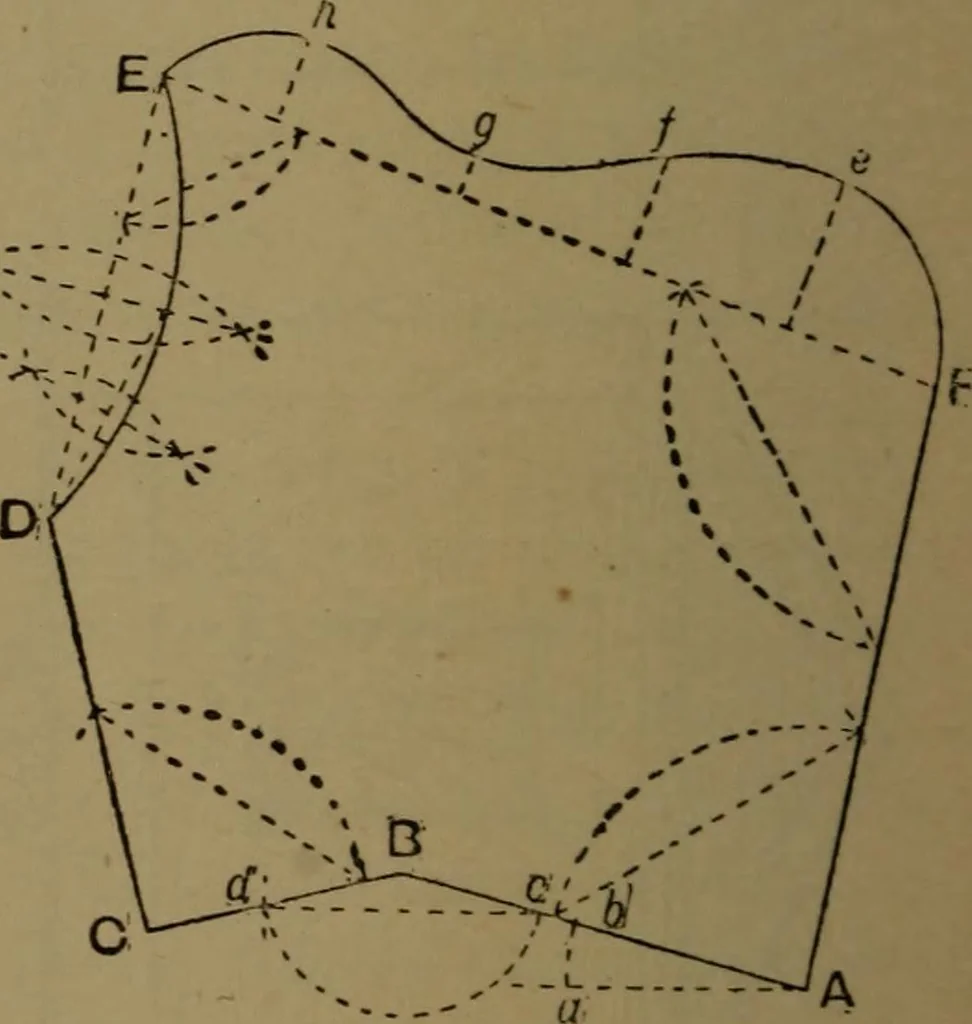

Fig. 221.—Irregular Outline tobe Copied. Fig. 222.—]\Iethod of Copyingan Irregular Outline. chord a & in the compasses, and from a on the new drawing cutthe arc at b, and draw A h prolonged, cutting it off at B to therequired length. If it were desired to copy the drawing totwice the scale, the…
