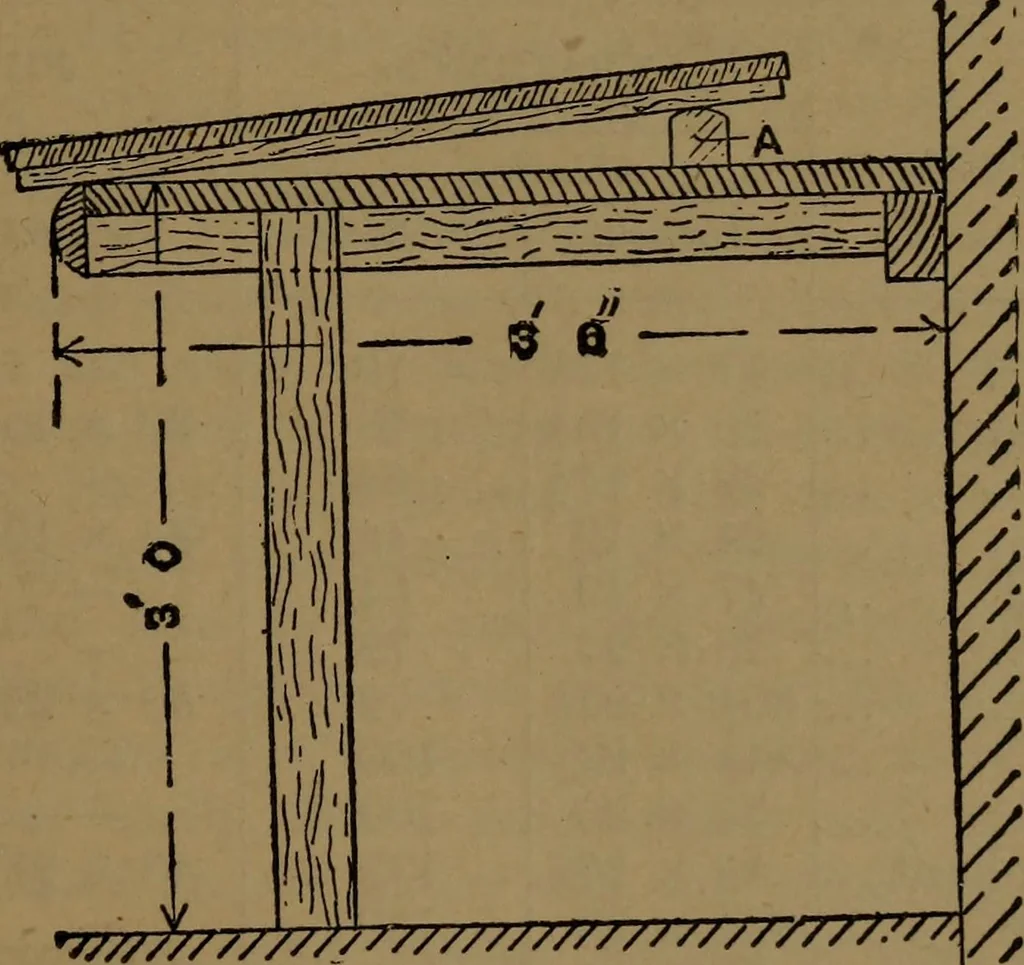

. The space underneath is often utilised bybeing fitted with drawers to hold drawings ; but when thisis done, sufficient knee room should be allowed, by keeping thefronts of the drawers well back from the edge of the desk.When the drawing-board is placed on this desk, the slope forconvenient… … 777777777777777777777777//^ Fig. 5.—Section of Fixed Table and Board. The paper most suitable to be used depends a great deal onthe kind of drawings to be made. For fine, accurate worksmooth or medium surface paper is the best. But for a coloureddrawing made more for show than accuracy, rough paper…
