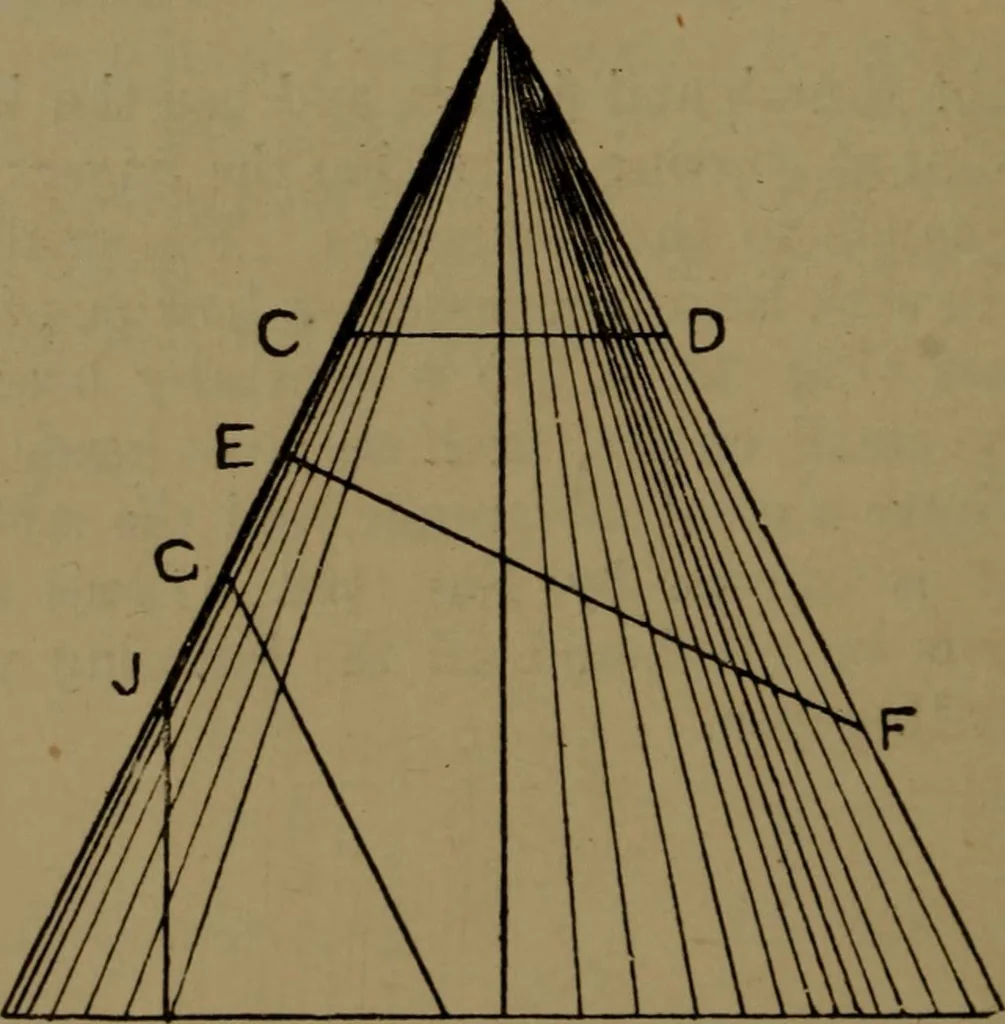

by Fig. 122. Lines for the smallprinting may now be ruled, and all the lettering put in neatlywith a steel writing pen. 70 CHAPTEE V. ELLIPTICAL CURVES. In the last chapter circular curves were dealt with, and by avery easy transition we pass to elliptical curves, or ellipses,commonly called… … K H B Fig. 123.—The Conic Sections, ab Triangle; c d Circle ; ef Ellipse;G H Parabola ; J k Hyperbola. The principal curves are derived from conic sections, so it willbe well now to study the different ways in which a cone may becut in the way shown by Fig. 123. A vertical section passingthrough…
