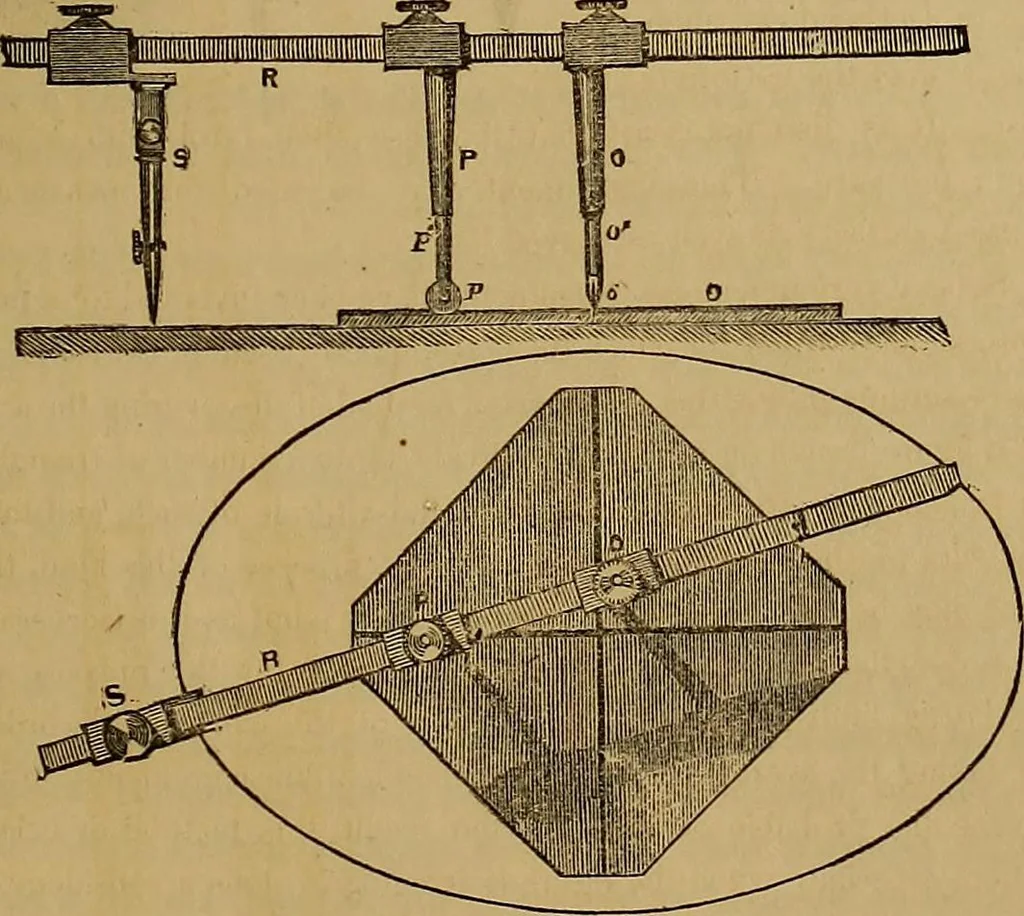

which it isplaced. In ordinary instruments the legs, o and p, ter-minate in simple points, which are respectively causedto traverse the grooves in the guide-plate, Q, in describ-ing the ellipse. It is, however, found to be almostimpossible to obtain a smooth action with this arrangement, asthe… … . • Fig. 30. an uneven outline. In the instrument represented in figs. 29 and30, the parts which traverse the guide-grooves in the plate, q, con-sist of small steel wheels, o, p, carried in the forked ends of the * See page 17. steel spindles, o, p, which are entered loose into the socket legs,0,…
