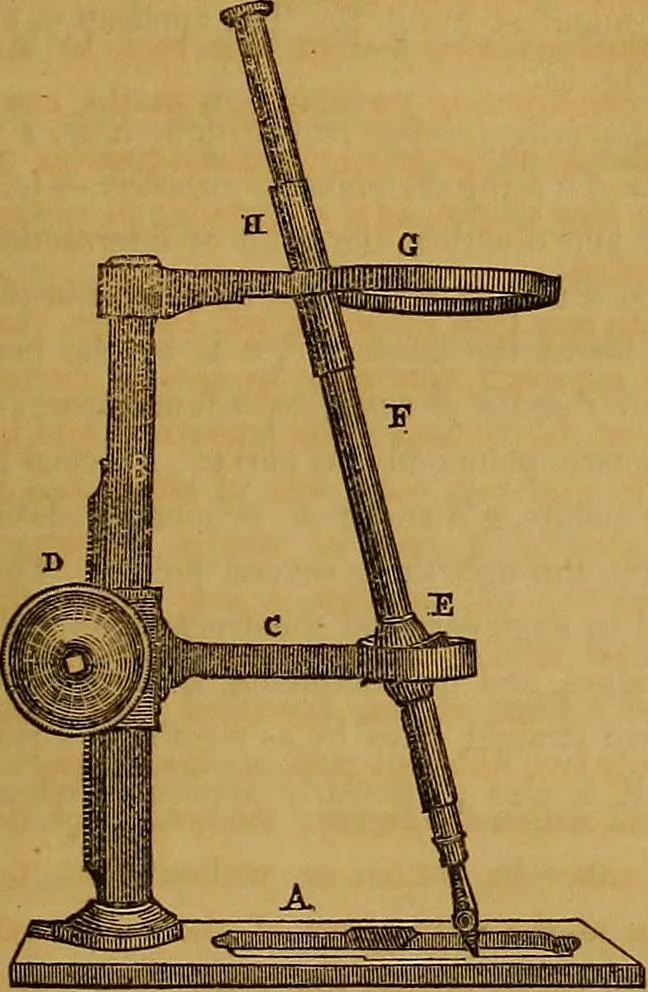

k, and bisect it in r»jand at K erect a perpendicular, cutting c d, or c d produced, at m ;then make G e equal to g m ; j, e, i, m, will be the centres of thefour circles required. Through the points, J and i, draw m k, m o,E p, E Q, each equal to M c ; then M n and e p will be the radii ofthe… … Several instruments have been invented for drawing ellipses,many of them very ingeniously contrived. The best known ofthese contrivances, are those of Farcy, Wilson, and Hick—thelast of which we present in the annexed engraving. It is shownas in working order,with a pen for drawingellipses in ink.…
