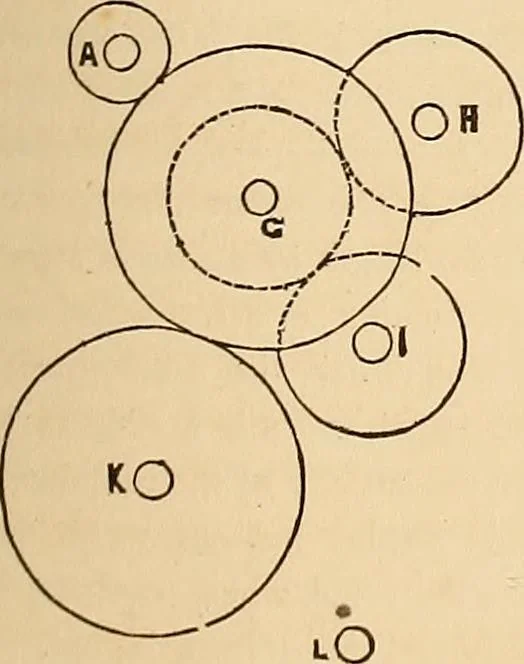

n the driving-shaft, A. Hand adjustments, notshown in the figure, are applied to the boxes of the guide-screw, g,and of the screws of the vertical and transverse slides of the slide-rest. A composite lathe, thus geared, may be applied to all tlieordinary descriptions of work. For sliding, boring,… … pose it is desired to stop the lathe at any particular point whenthe attendant is absent, the screw, k, is put in gear by itsclutch,and by means of a detent stop-movement, it stops the lathe atthe precise point, by throwing the belt off the fast pulley on theend of A, which travels with…
