The practical draughtsman's book of industrial design, and machinist's and engineer's drawing companion: forming a complete course of mechanical, engineering, and architectural drawing (1854)
Armengaud, aîné (Jacques-Eugène), 1810-1891, Armengaud, Charles A., 1813-1893, Amouroux, Jules, Cory, William Johnson, 1823-1892 · New York, Stringer & Townsend · leaf 112

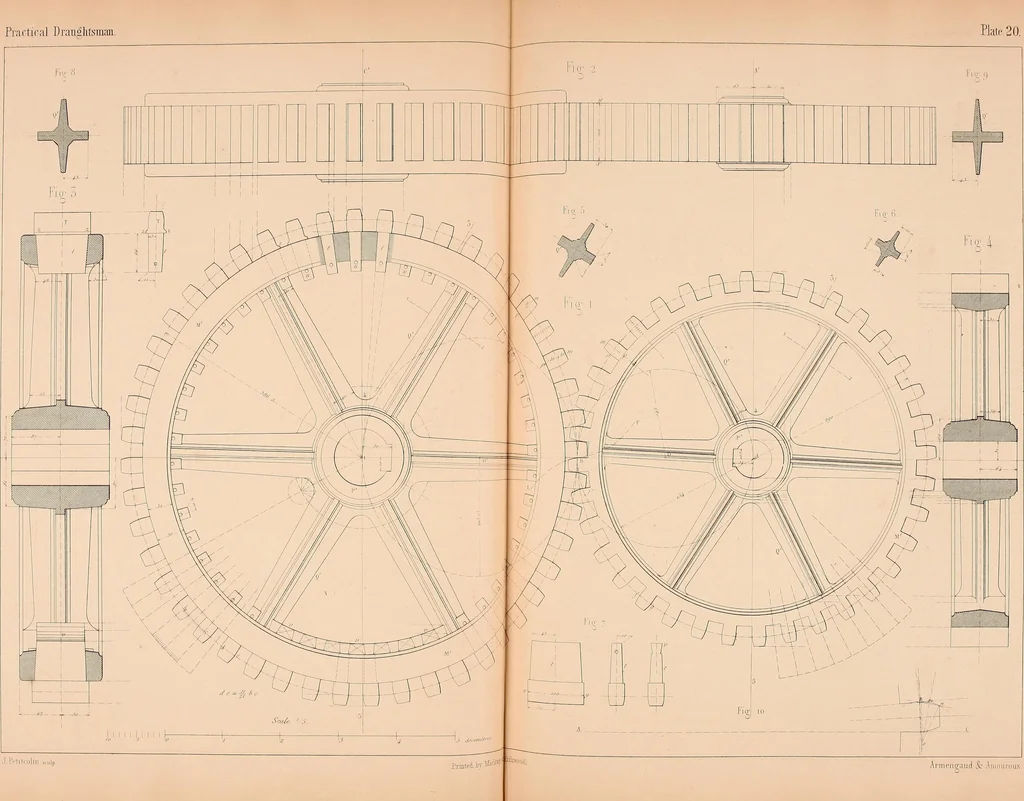

Practical I)ran° htsman Plate 20. _^«SI r i … \rmen(raud & Amouroux BOOK OF INDUSTRIAL DESIGN. 65 through the different points of contact on the stationary circle,measured upon the arcs described with the centre, c, to the samearcs, but so that the extremities of the whole may lie in the pro-longation of the radius, c b. Thus the…
Decorative arts · Drawing
Internet Archive · Clark Art Institute Library · Public Domain Mark 1.0. Free to use for anything.
