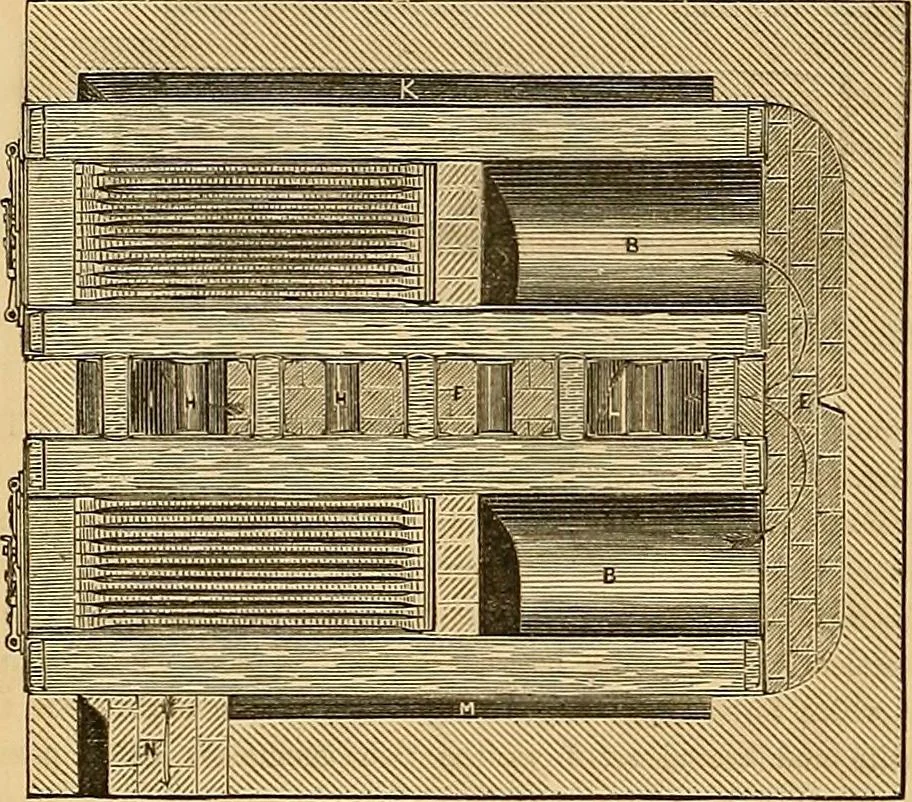

oaid the internal circulation and the passing away of the steam.This central thoroughfare, f, then conveys the current of heatand gaseous products to the front end of the boiler, where itdiverges, as at I, descending into a short transverse flue, j, passing each its own supply of steam, through the… … beneath the generator on that side. This conveys the currentinto the external longitudinal flue, K, surrounding and covering ina great portion of the outer side and bottom of that generator;and this flue, K, then forms the duct for the traverse of the currenta second time to the far end of the…
