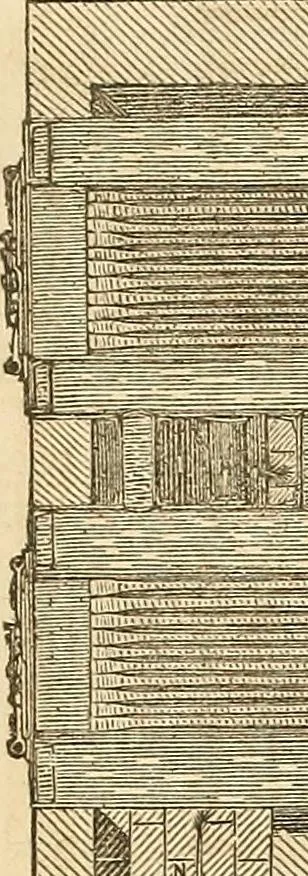

tercepted by this arrangement of tubular water-spaces, as it traverses the intermediate chamber, imparts its heatto an extended heating area. The tubes are disposed in tworows, sloping at reversed angles from one boiler to the other, toaid the internal circulation and the passing away of the…
