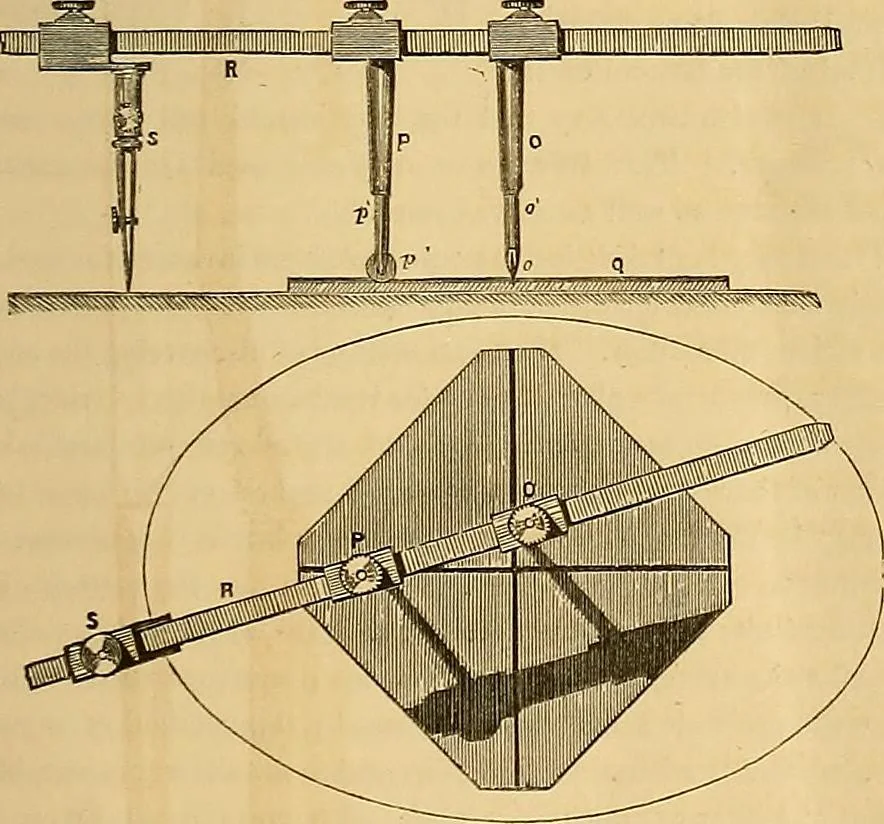

er upon which it isplaced. In ordinary instruments the legs, O and P, ter-minate in simple points, which are respectively causedto traverse the grooves in the guide-plate, Q, in describ- ing the ellipse. It is, however, found to be almost impossible to obtain a smooth action with this arrangement,… … Fig. 30. an uneven outline. In the instrument represented in figs. 29 and30, the parts which traverse the guide-grooves in the plate, Q, con-sist of small steel wheels, o, p, carried in the forked ends of the * See page 17. steel spindles, o, p, which are entered loose into the socket legs,o, P.…
