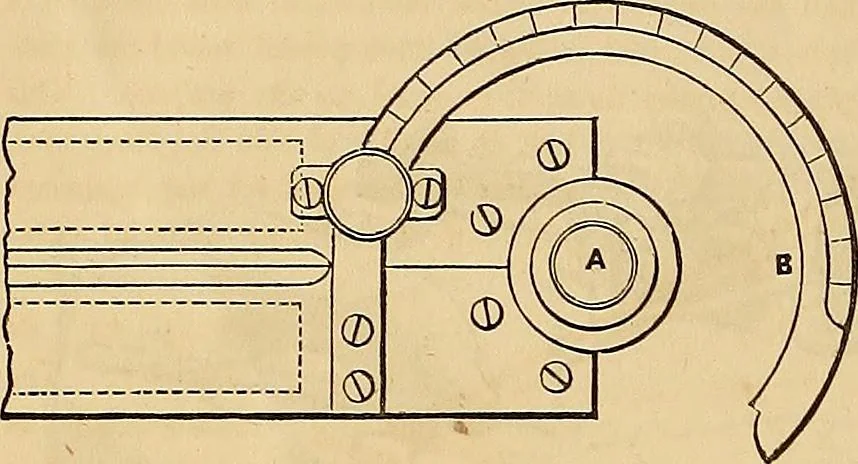

by scale and multiplication. Mr. Miller of Woolwich has devised a very useful modificationof the common jointed rule. This instrument is termed a radiator, and our engraving, fig. 36, represents a portion ofit in plan, whilst fig. 37 is an end elevation. The inner edges ofthe legs are used as… … < with sockets, which admit of any length of ruler being used.The radiator is applicable to the following purposes :— For drawing lines in perspective, or geometrical drawing, to apoint or centre; for setting off angles as a protractor; for a right-angled triangle, or any other angles ; and for…
