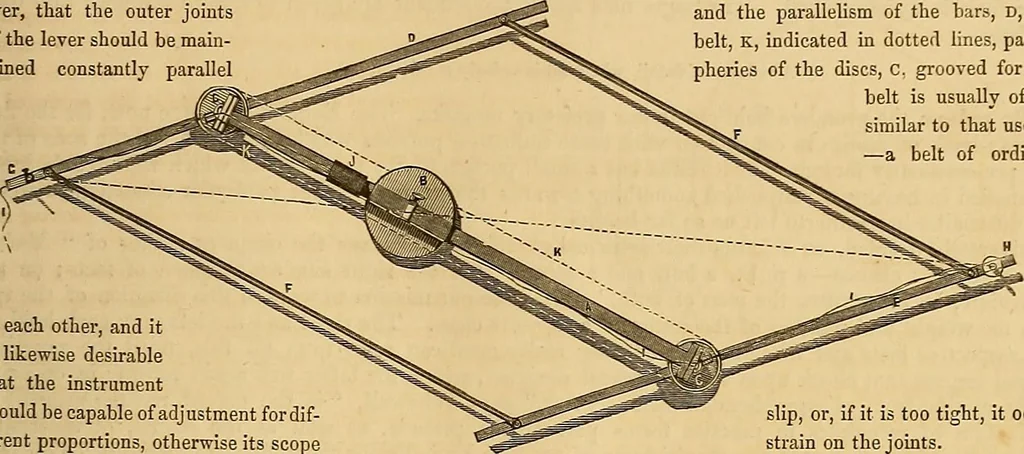

his case, however,the radii of the arcs would be uniform, and an arrangement isrequired, providing for the increase or decrease in length of thetwo radii, but in such a manner that they shall continually BOOK OP INDUSTRIAL DESIGN. 195 be in the same proportion to each other. This is effected… … to each other, and itis likewise desirablethat the instrumentshould be capable of adjustment fordif-ferent proportions, otherwise its scopeof usefulness would be sadly narrowed. These several conditions are fulfilled in the instrument repre-sented in our engraving, fig. 40, which is a pentagraph of…
