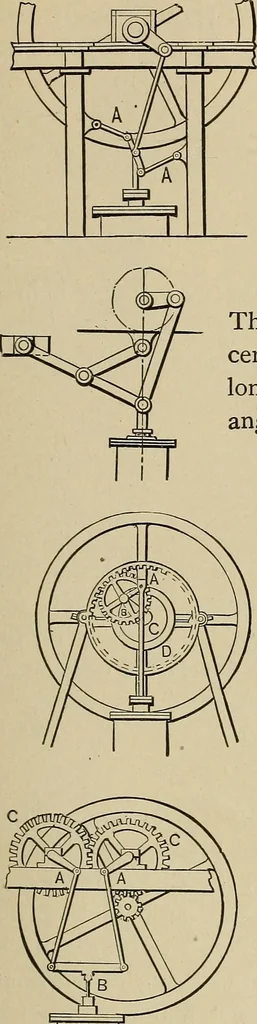

gine. The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and A, F are of equal length. A, B and A, C are of equal length. E r 282. PARALLEL MOTION by a rockingI beam. A, E and A, C are equal when E ispivoted in the centre line of motion of… … 1 f 284. PARALLEL MOTION for a ver-tical engine. A, A, radius bars pivoted taengine frame opposite to the middle ofstroke.
