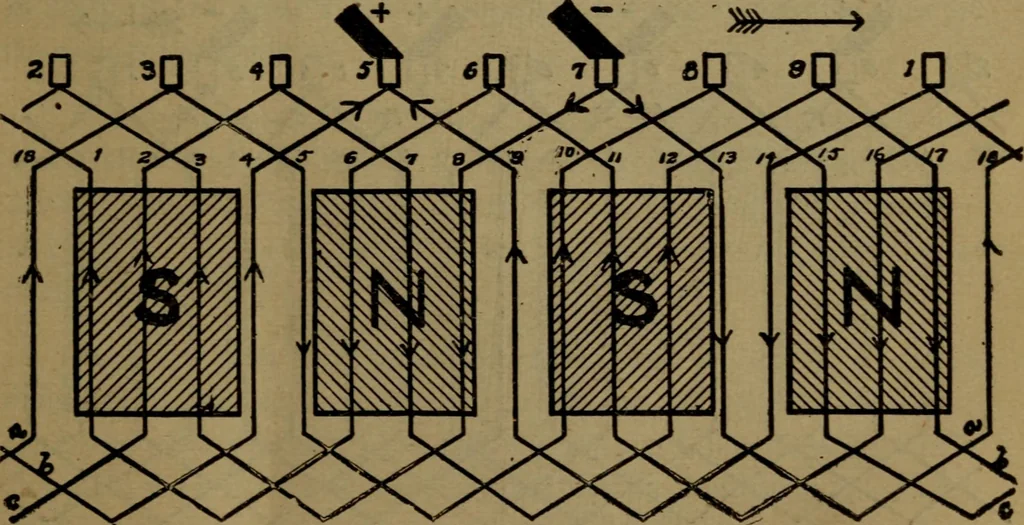

mature, and the current inpassing from one commutator bar to the next is compelledto flow under all the poles on the dynamo. This is shownin Fig. 62. With a wave winding either tvro or four brushesmay be used. This method of winding possesses the greatadvantage that the E. M. F. produced in each of… … Figure 62Wave winding on four pole dynamo. l«g The brushes in a four-pole dynamo are placed 90 degreesapart, in a six-pole dynamo CO degrees apart on the com-mutator. In a four-pole dynamo brushes opposite eachother should be connected together. In a six-pole dynamothree sets of brushes 120 degrees…
