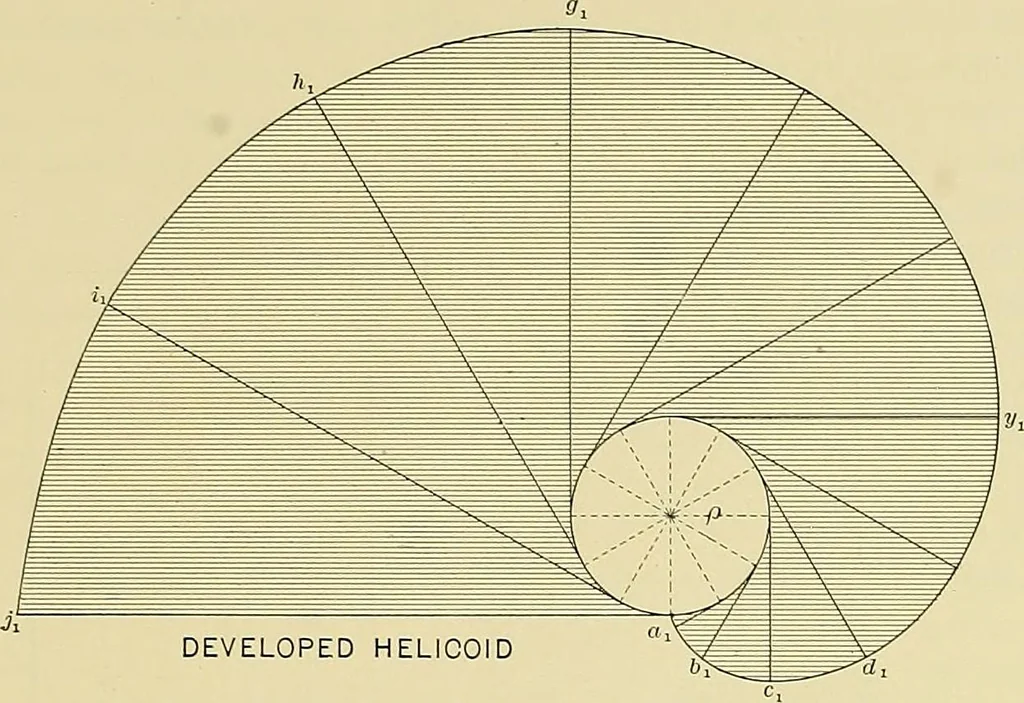

to the hehxmaintain the same relation to the developed hehx, and appear in their tme length on the development.The student can make a model of one nappe of this surface by wrapping a sheet of Bristolboard, shaped like Fig. 273, upon a. cylinder of radius r in the equation r sece = p; or a… … THE INTERSECTION OF SURFACES. 421. When plane-sided surfaces intersect, their outhne of interpenetration is necessarily composed ofstraight hnes; but these not being, in general, in one plane, form what is called a tioisted or toarpedpolygon; also called a gauche polygon. 422. If either of two…
