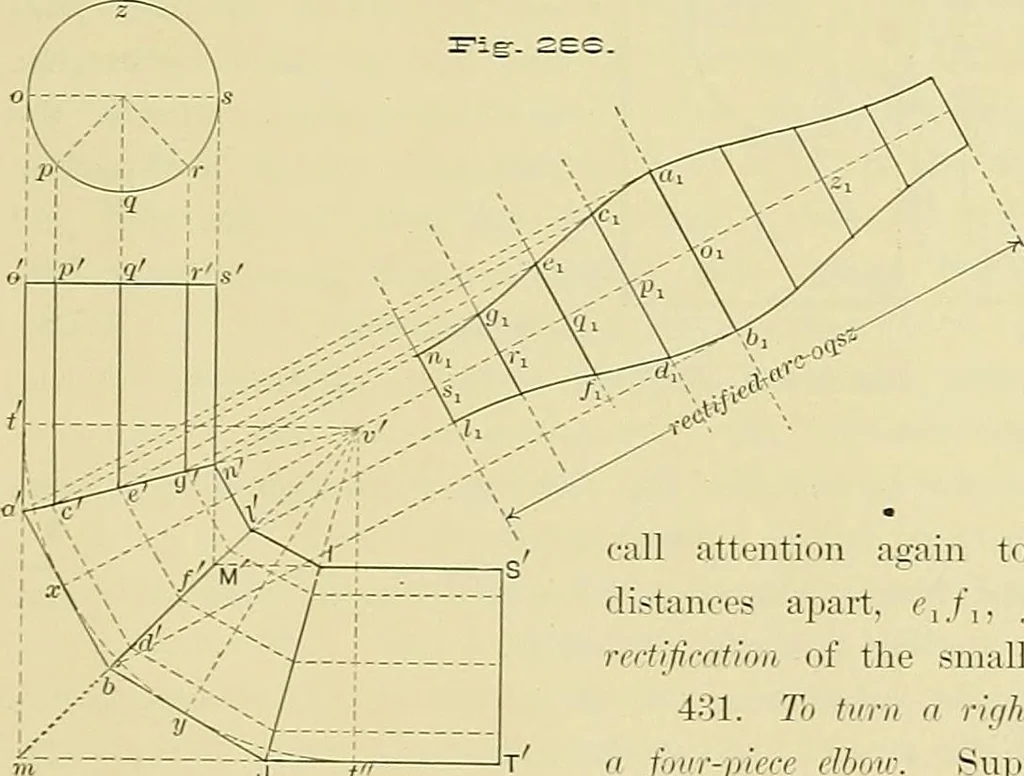

l thereetlfieation of the small arcs of the plan.431. To turn a right angle with a jiij)e by J f/, 1 a four-piece elbo/w. Supposing that the blast pipe of a furnace was ti> be carried around a bend by a four-piece elbow; the procedure wouldstill closely resemble that of the last problem. Instead…
