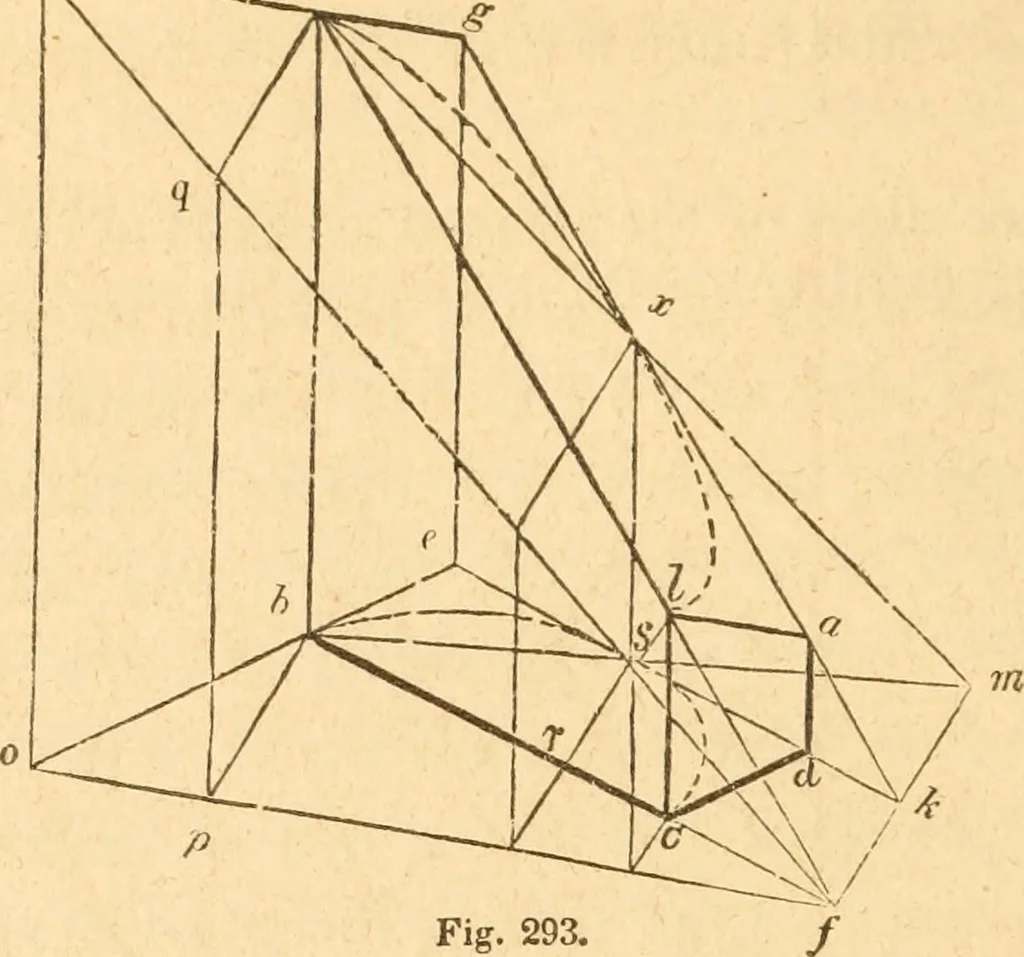

to be extendedto meet that floor, then it will be obvious that the intersectionbetween that plane and the plane of the floor would be in the line,f k; and the line,/A:, being in the plane of the floor, and also inthe inclined plane, J^ A;/, any line made in the plane,^^ A*/,parallel to/A:, must be… … Fig. 293, This may be done thus : from/, draw/ o, at right angles iofm;extend e 6 to o, and^ /, to t; from o, draw o t, at right angles toofj and join t and/; then t of will be a perpendicular plane, atright angles to the inclined plane, t g kf; because the base ofthe former, o/ is at right angles…
