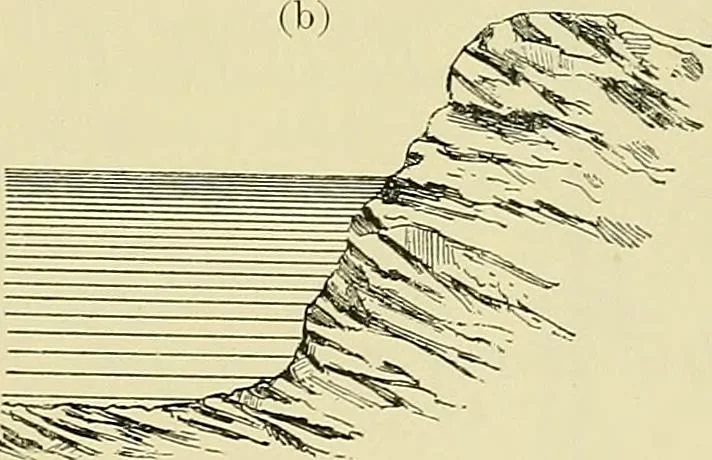

In addition to a rock section Fig. 11 (a) shows the method of indicating a mud or sand bedwitli small random lioulders. Water either in section or as a receding surface may be shcjwn l\v parallel lines, the spacesbetween them increasing gradually. Conventional representations of wood, masonry and…
