Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 537

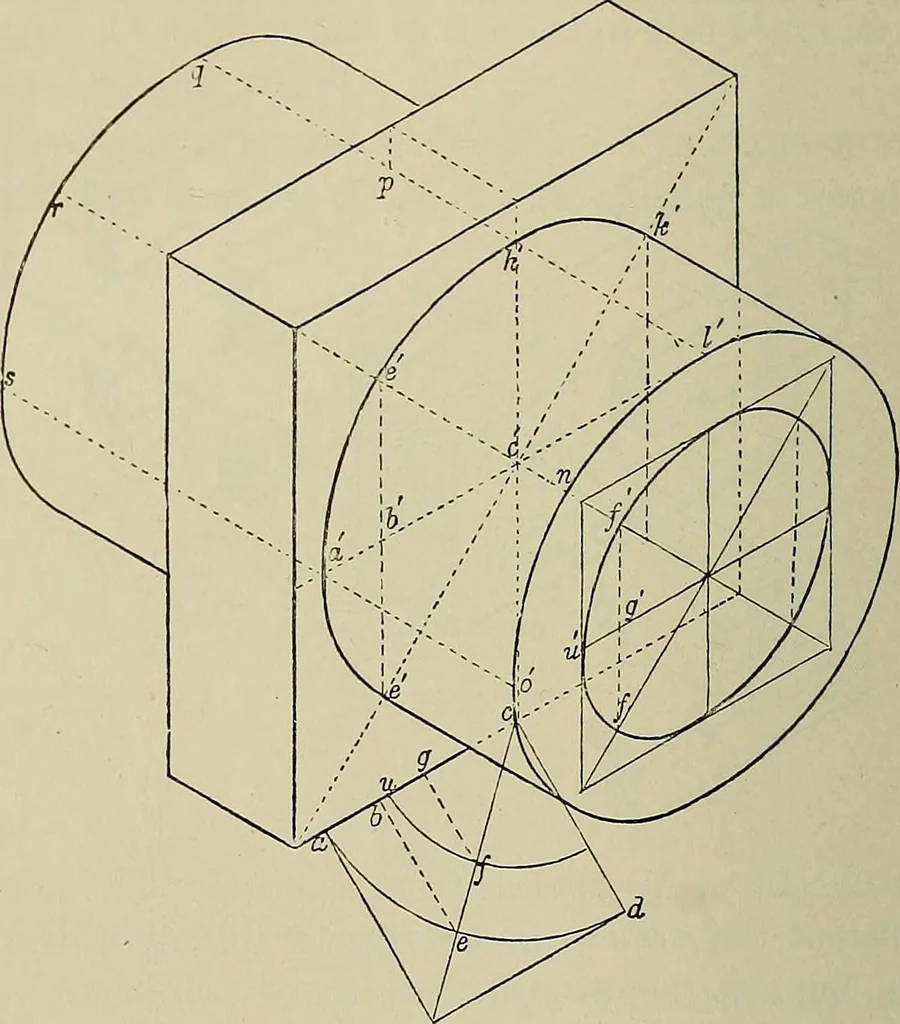

that of the outer circle of the cylinder, andenclose it in a square, as shown. Draw a diagonal to the square 5i6 SOLID GEOMETRY from c, cutting the quadrant in c. Draw ch parallel to cd. Setoff from c, the centre of the face, ca and cIi equal to ca. Froma set oft ab equal to ah, and draw a… … Fig. 296. face of the rectangular solid. From each of the points in thecircle draw lines parallel to hl and equal to it in length, asen, ao, etc., and draw a fair curve through the ends of these lines.Produce hl, and make hp equal to the thickness of theblock. From each of the points Ji, e, a,…
