Practical engineering drawing and third angle projection, for students in scientific, technical and manual training schools and for ... draughtsmen .. (1897)
Willson, Frederick Newton, 1855-1939 · Princeton, N.J., The author · leaf 33

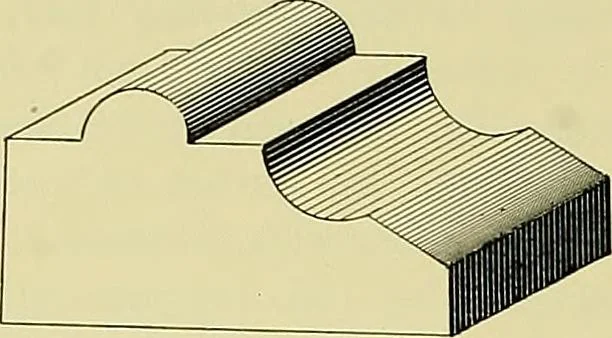

from actual construction in wood. By setting a moulding vertically, as in Fig. 49, and projectinghorizontally fi-om its points, a fi-ont view is obtained, as in Fig. 50. Fig-. 47. ■FLs- -ae.
