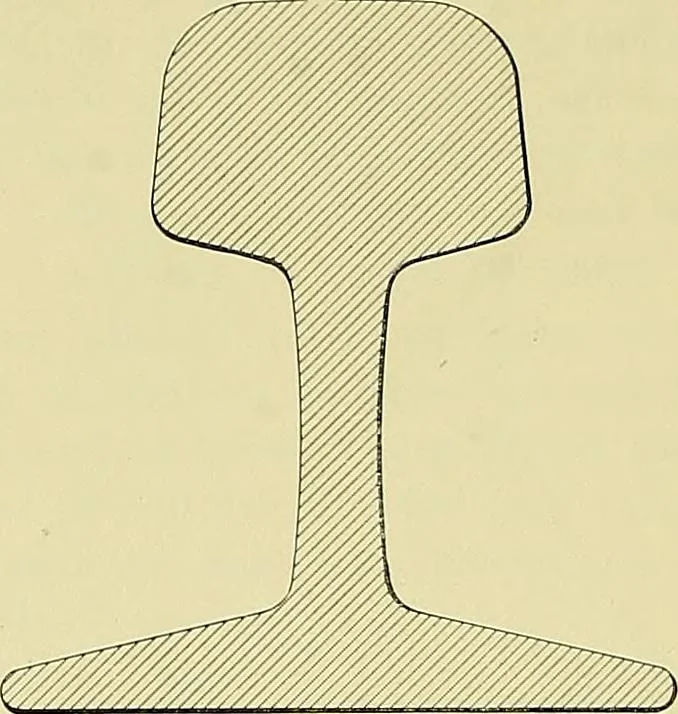

38 THEORETICAL AND PRACTICAL GRAPHICS. The proportions given are slightly different from those recommended in the report* of the com-mittee appointed by the American Society of Civil Engineers to examine into the proper relations to … each other of the sections of railway wheels and rails. There was quite general agreement as to the following recommendations: a top radius of twelve inches; a quarter-inch corner radius; vertical sides sigr- eo- I 2^ IN.
