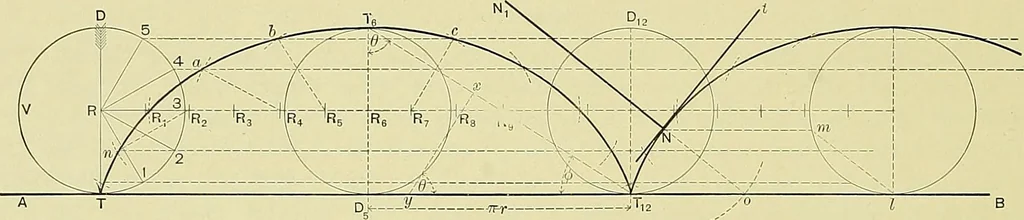

tter reaches ii^, when it passes and goes ahead of it. From .R, the line of levelthrough 5 could be cut not alone at c by an arc of radius c R, but also in a second point;evidently but one of these points belongs to the cycloid, and the choice depends upon the directionof turning and the relative… … 168. Were ^joints T^ and T^, given, and the semi-cycloid T^ T^.., desired, we can readily ascertainthe base, ^4 B, and generating circle, as follows:—-Join T|, with T,,; at any point of such line, asX, erect a j^erpendicular, xyj. from the similar triangles x y T^, and T,. D.^ T^^ having angle…
