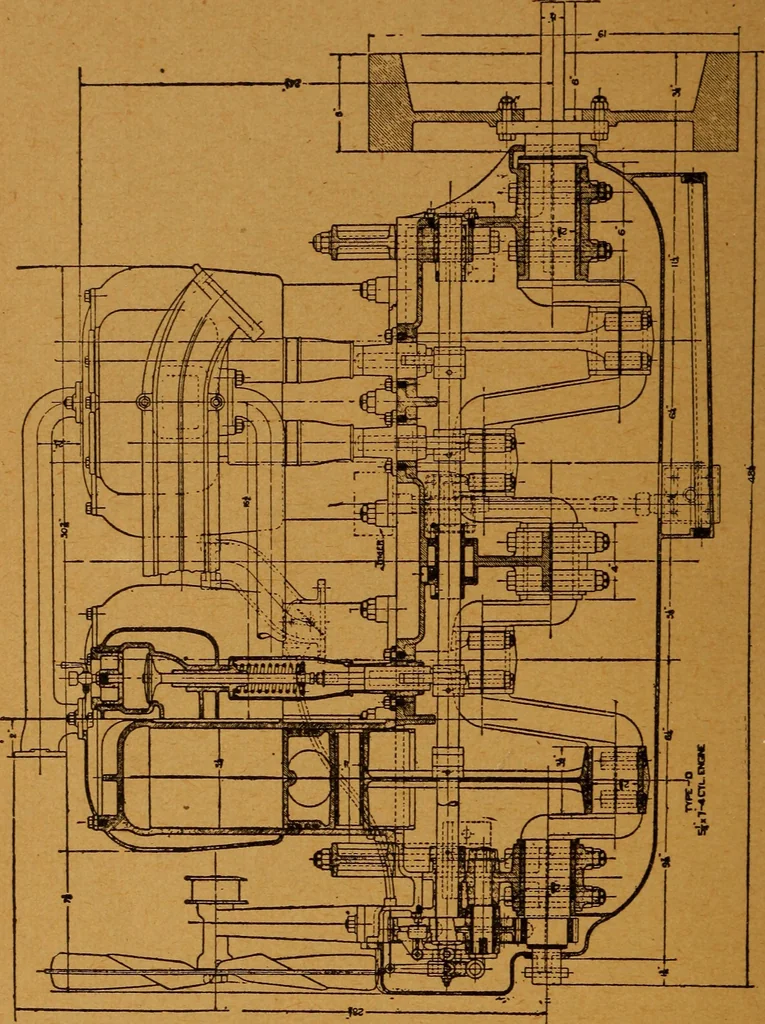

exhaustpassages. The piping is less complicated which permits of amore effective arrangement of the carburetor and magneto.Since the piping in the latter type can be arranged to betteradvantage, less back pressure is the result. 104 GAS, OIL AND STEAM ENGINES As in the previous case, the valves are… … Fig. F-15. Longitudinal Through Wisconsin Truck Motor. sheet metal housings or tubes. The circulating pump is shownat the left nearly on a line with the left hand cam shaft, thepump outlet being inclined toward the cylinder so that itenters the water jacket under the exhaust valves. Waterleaves the…
