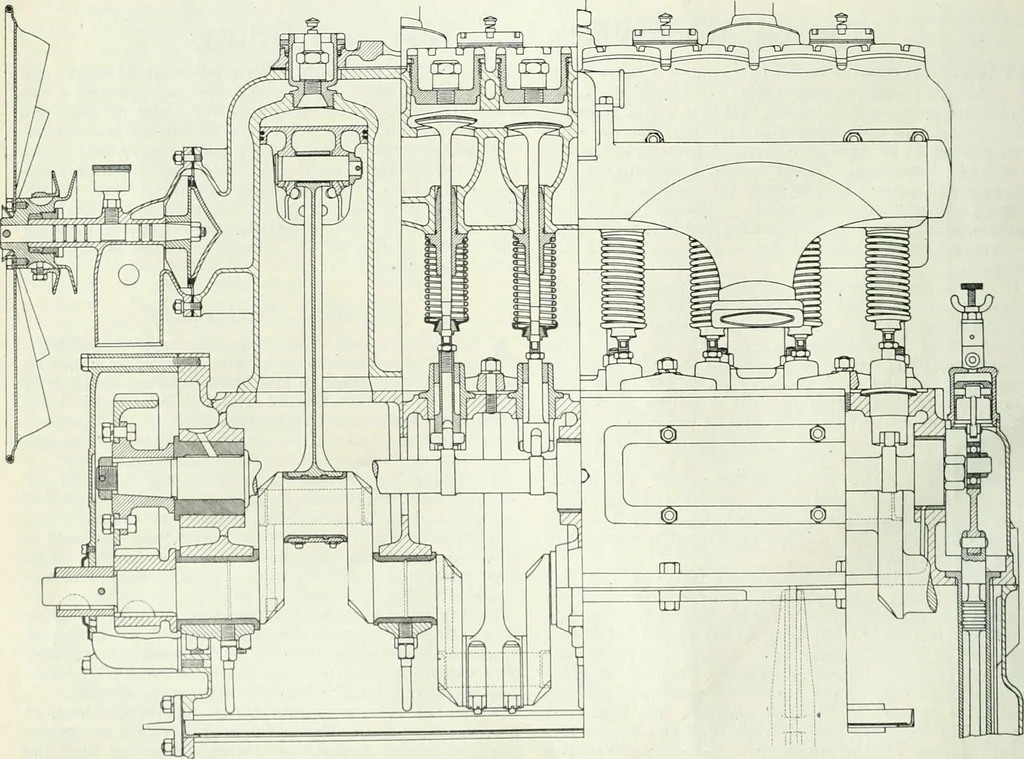

t mani-fold is located. A feature of both Vauxhall engines is the filter trayof gauze, which forms a false bottom to the crankcase, andcan be withdrawn from the front below the cross memberby removing the six nuts which hold the flanged front endto the front face of the oil sump. Engine and… … Vauxhall engine, 3% x 5% 30-98 hp. Note spark plug in cups over center of cylinder bore February 10, 1921 AUTOMOTIVE INDUSTRIESTHE AUTOMOBILE 255 an expanding type brake. An open propeller shaft, withstar and block joints at front and rear ends respectively,conveys the drive to the spiral bevel…
