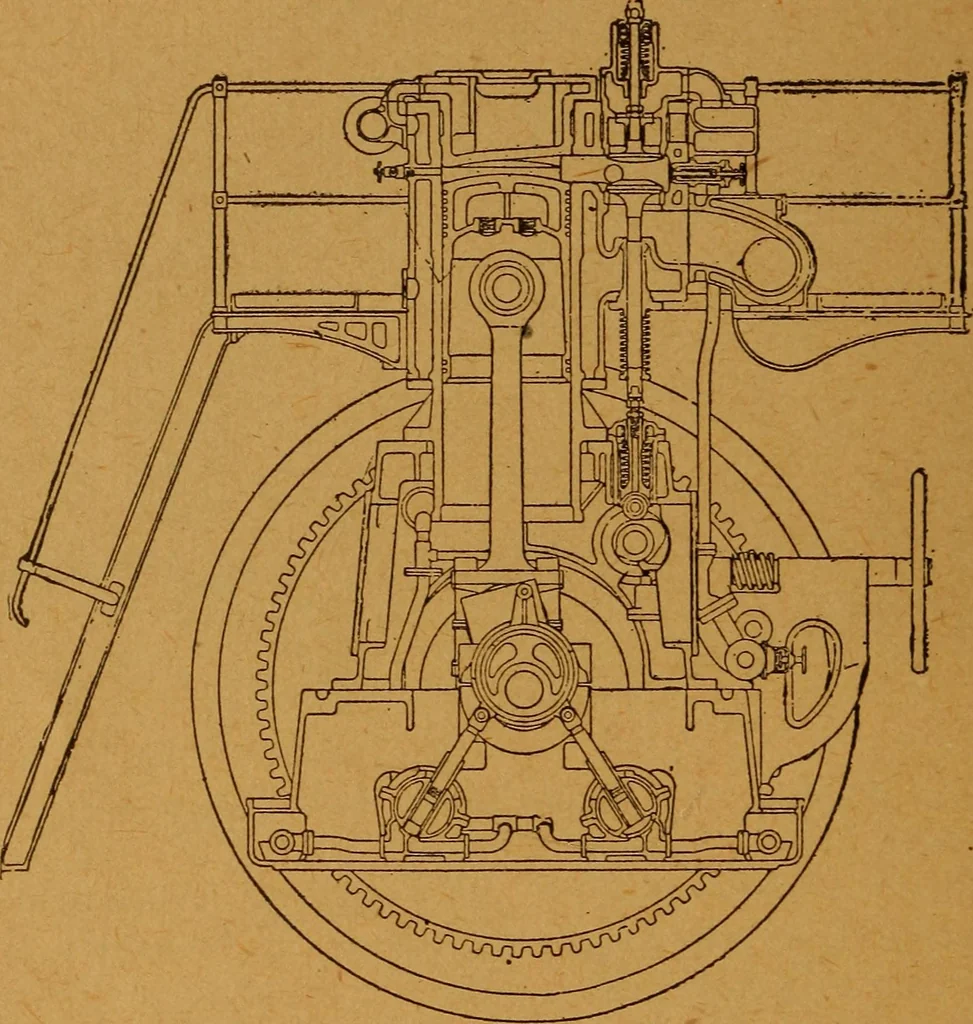

d to the oil supply of the main bearings, no dependencebeing placed on a splash system. After leaving the bearings,the oil drops into the crank case and drains into the sumpshown at £he left of the longitudinal section. From the sump,the oil returns to the oil pump from which point it is returnedto… … Fig. 21. Cross-Section Through Browett-Lindly Engine. shown in longitudinal and cross-section by Figs. 20 and 21.This is of the L type of valve arrangement, but instead ofhaving the valves side by side as in the preceding case, theinlet valve is placed over the exhaust as will be seen from…
