Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 112

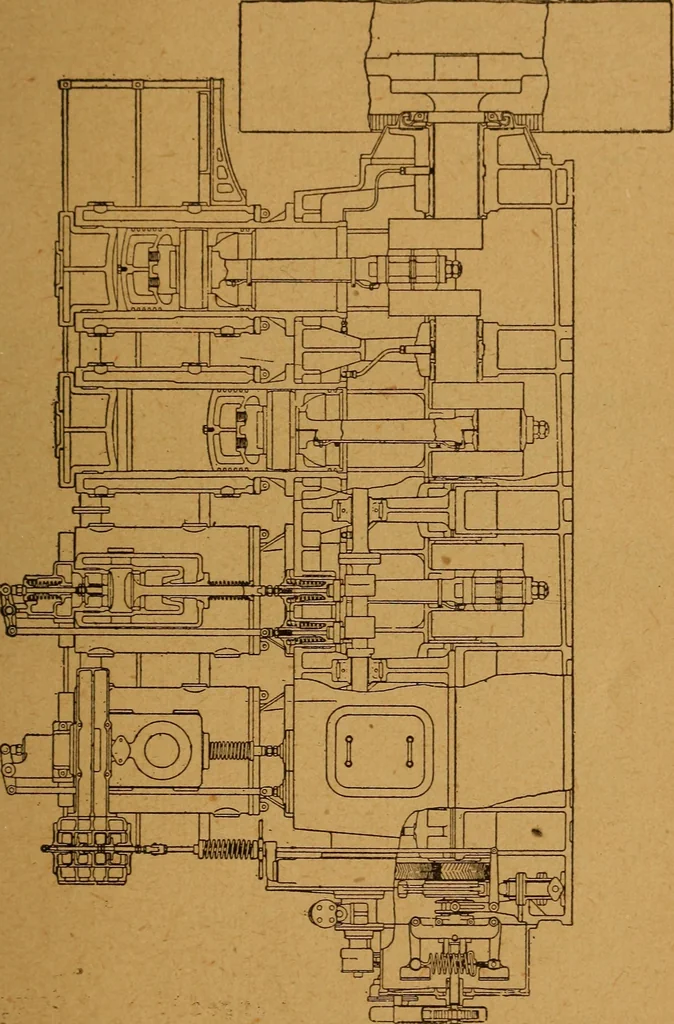

he auto engines, but the inlet valvereceives its motion through a long vertical rod and horizon-tal lever, the latter being located on the cylinder head as shown (JAS, OIL AND STEAM ENGINES 107 by the longitudinal section. A supplementary valve is mountedloosely on the stem of the inlet valve, and… … Fig. 20. .Section Through Browett-LindlyEngine. Four Cylinder Stationary so that air first enters the cylinder and then, by further travel ofthe main valve, the gas valve opens and the combined chargeis taken in. This prevents any back fires as the gas andair are entirely separated until they enter…
Internal combustion engines · Traction-engines
