Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 116

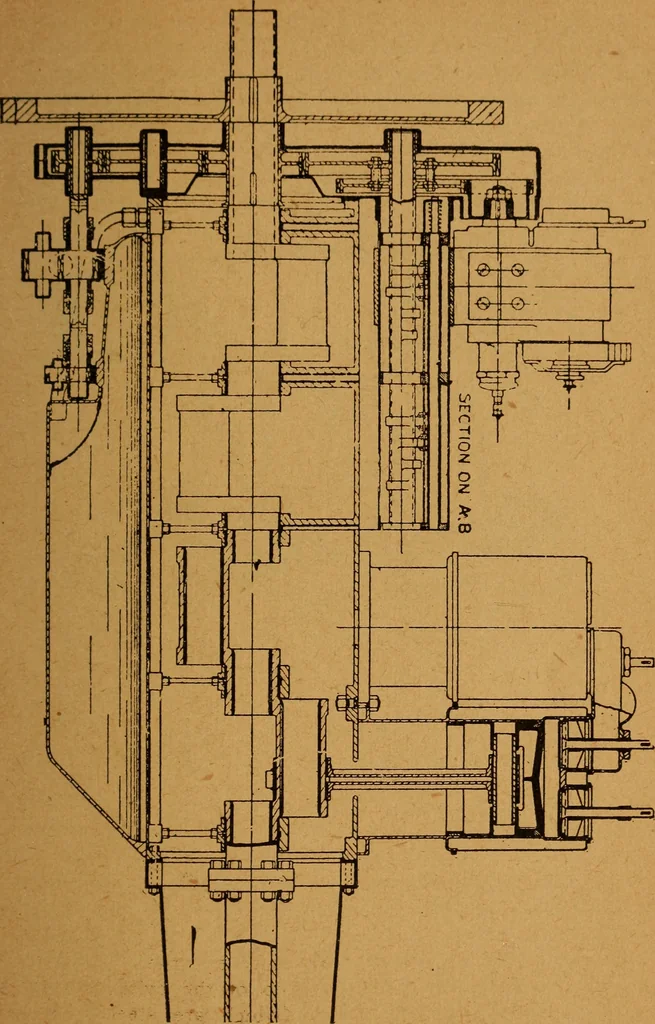

byFigs. 23-24-25, which is built by the All British Engine Com-pany for the aeronautical branch of the English War Depart-ment. It has eight cylinders of 5 inch bore, by A1/^ inch stroke,and develops its rated horse-power at 1,200 revolutions perminute. Data from Aero London. The crankshaft, which… … Fig. 23. Longitudinal Section Through A. B. C. 100 Horse-Power V Motor. 112 GAS, OIL AND STEAM ENGINES lined with white metal. It is provided with four throws, eachcrank pin being arranged to take the big end bearings of twoconnecting rods from cylinders on opposite sides of the crankcase. There is…
Internal combustion engines · Traction-engines
