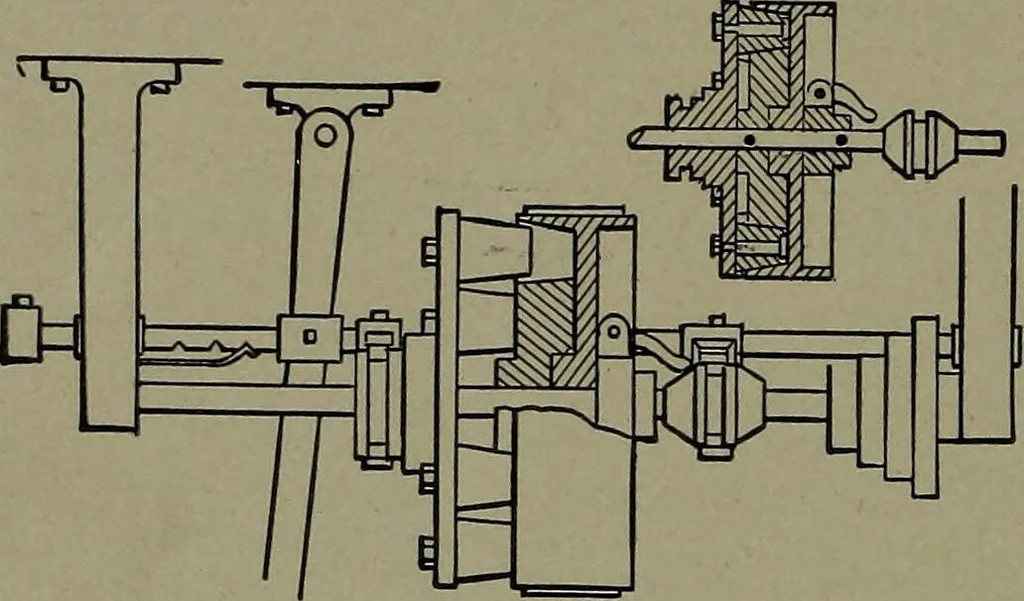

1145a. HYDRO - EXTRACTOR,showing method of behing- with ad-justable idler and cone pulleys. Type for laundry work. At a speedof from 1,000 to 2,000 revolutions perminute the water flies off by centrifu-gal force and the material is left near-ly dry. 28o MOTION AND DEVICES CONTROLLING MOTION. … 1145^7. REVERSING PULLEY.—A conical disk fixed to theshaft; a pulley loose on the shaft with a clutch; a disk loose on the shaft, fixed as to motionby an arm, carries a set ofconical rollers, which arepushed into a bearing bythe shipper as shown in theright-hand figure for re-versing at increased…
