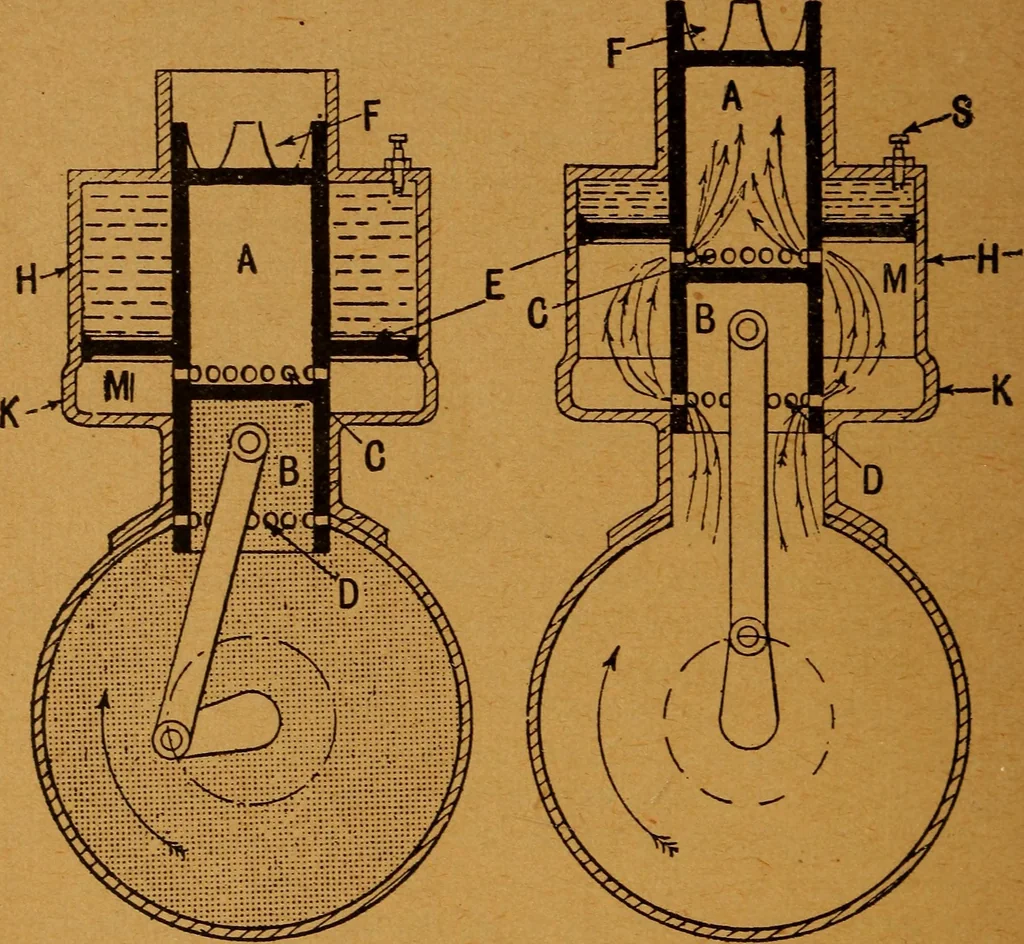

OIL AND STEAM ENGINES stroke. The cylinder diameter is then reduced to the diameterof the main piston barrel. The motor operates as follows: Suppose the piston to be ascending (Fig. 1), compressing the.mixture above the piston head in the cylinder E, and at thesame time the volume of the space M,… … Fig. 65. Gnome Rotary Two Stroke Motor Diagram. Diagrams 1 and 2. M, consequently as the piston goes up, a partial vacuum willbe formed in these two chambers. When the piston reaches thetop of its stroke as shown in Fig. 2, the holes D in the lowerend B of the piston are uncovered as they rise into…
