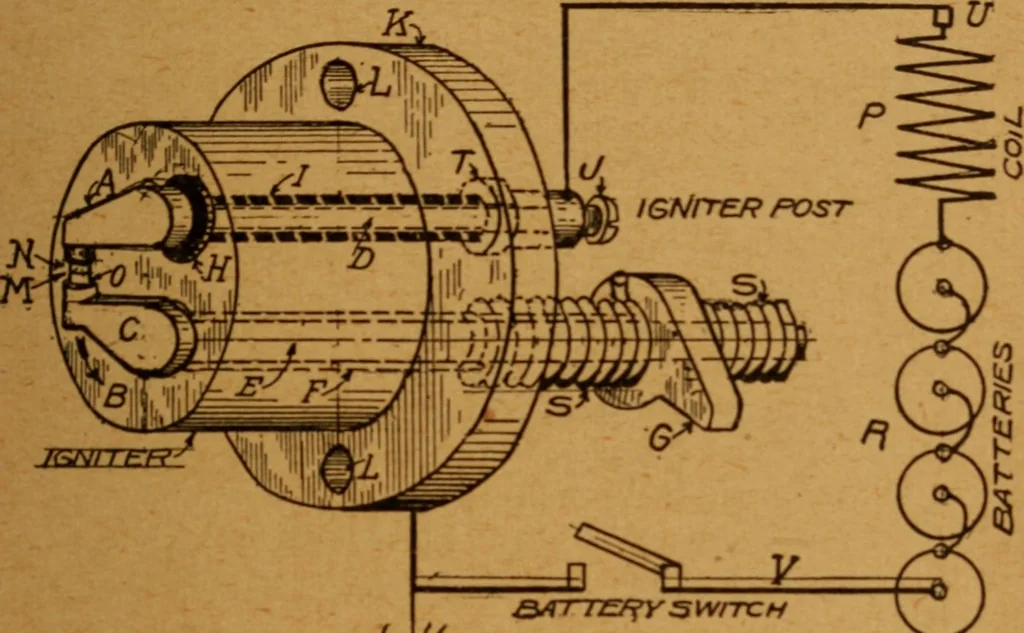

oved in the direction of arrow B, the current isopened and a spark occurs at the point of separation M, in con-tact with the gas in the combustion chamber. The electrodeC being connected with the engine frame is said to begrounded. If the stationary electrode A were not insulatedfrom the casting K,… … Fig. 93. Diagram of Igniter and Connections. A push rod which is actuated by a cam on the engine, en-gages with the trigger G, and causes the spark to occur whenthe piston is on the end of the compression stroke. In nearly all engines, the relation between the time of the spark and thepiston…
