Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 255

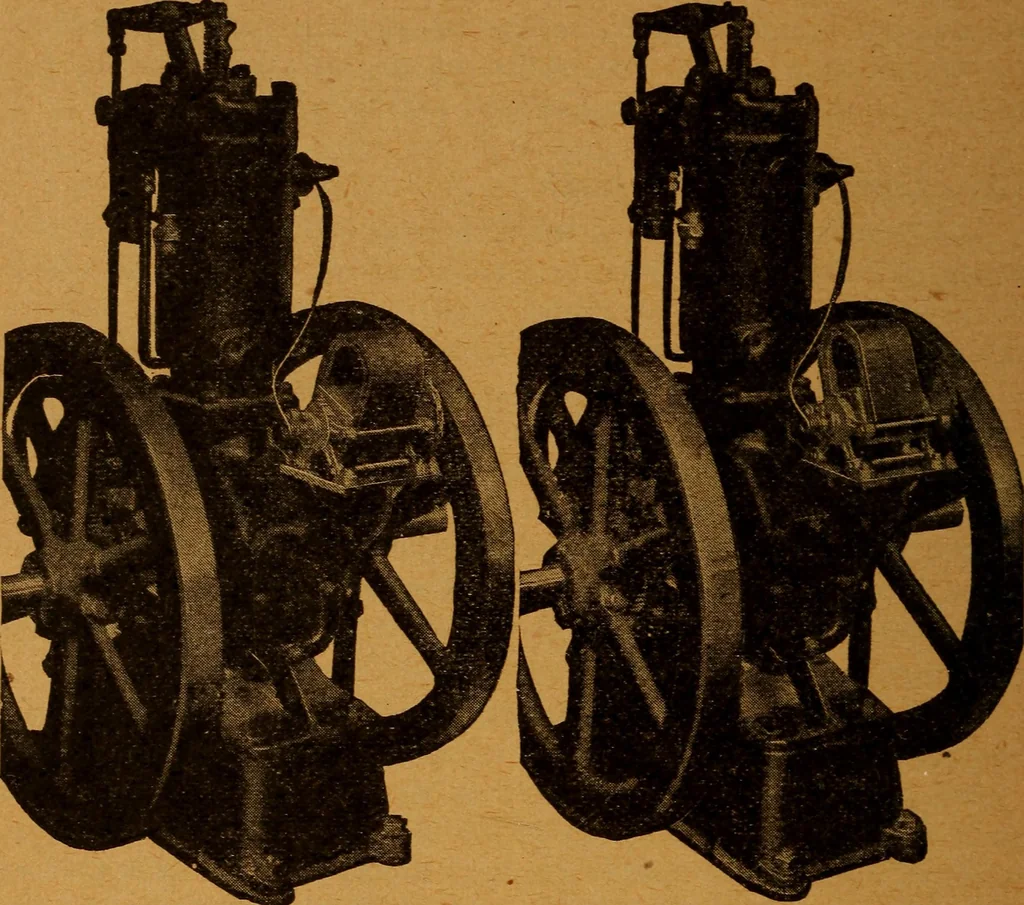

int should always be given attention. Outside 250 GAS, OIL AND STEAM ENGINES of this the only attention necessary is to keep the bearings oiled.Fig. 101 and Fig. 102 show the Sumter low tension magneto asarranged for make and break ignition. The armature and itsconnections are of exactly the same… … Fig. 101. Sumter Magneto Advanced. Fig. 102. Sumter Magneto Retarded. rangement allows the full voltage of the magneto to be obtainedat any point within the range of the ignitor, an important itemwhen starting the engine or running at low speed. Whenmounted on the engine, as shown by Fig. 103, the…
Internal combustion engines · Traction-engines
