Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 256

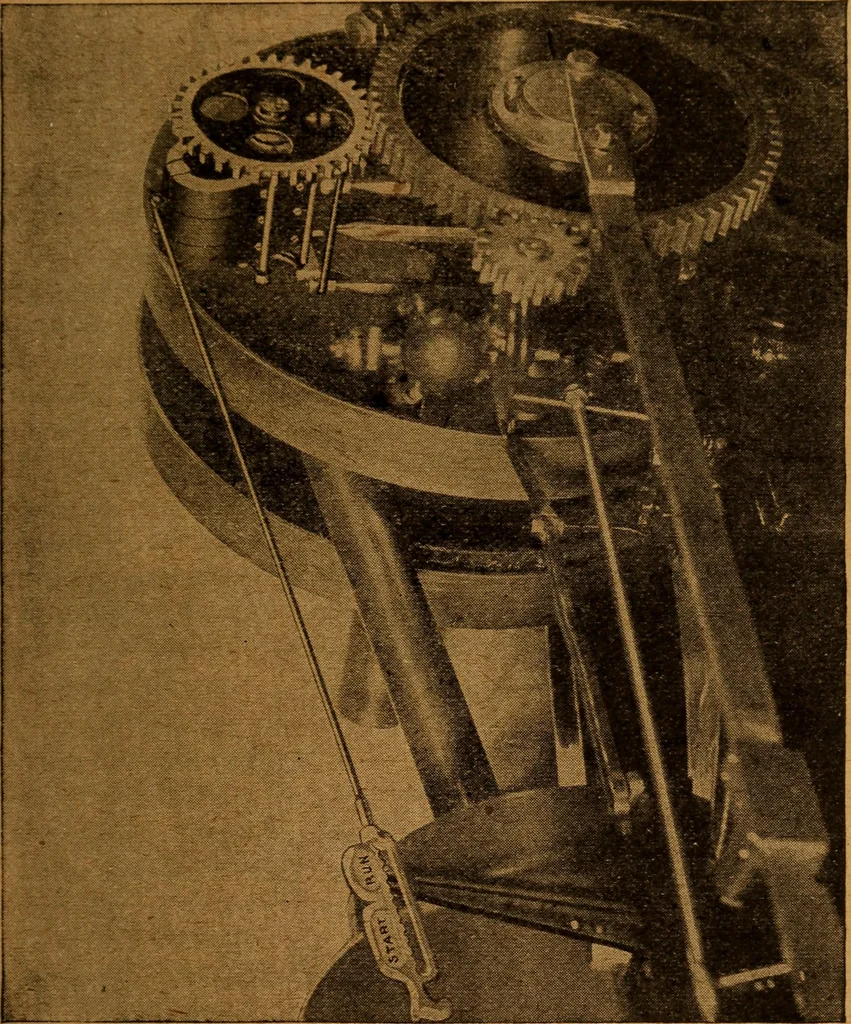

perating arm is held fast by tooth engagementsas shown in the slotted handle. As shown in the illustrationthe magneto is fully advanced. The gears by which the mag- GAS, OIL AND STEAM ENGINES 251 neto is driven are clearly shown in the cut, the ratio betweenthe gear on the crank shaft and that on… … w bo mounted on a vertical engine in Fig. 104. In this case themagneto is positively driven from the crank shaft of the engineby a chain. The single conductor running from the magnetoto the cylinder heads is clearly shown. To start the engine,the igniter is set in the usual manner and the magneto…
