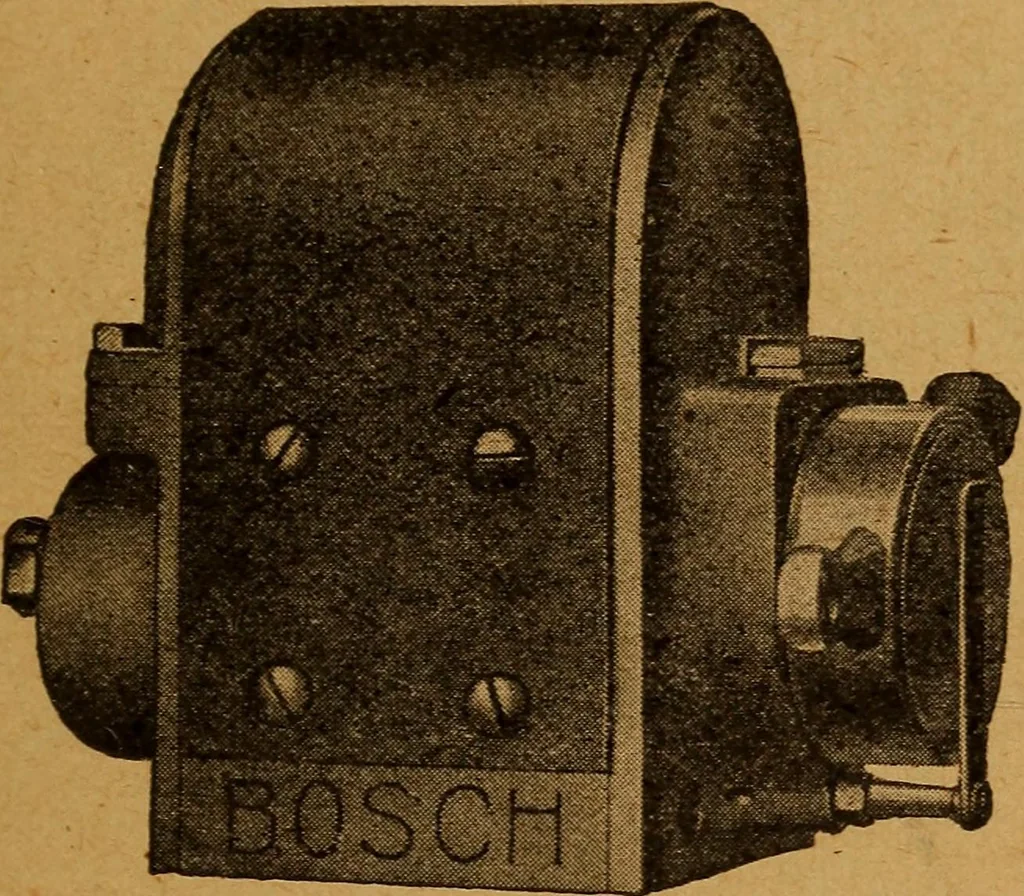

he coils carried by the arma-ture. This arrangement reduces the wiring problem to a mini-mum, as the only wires required are those leading directly tothe spark plugs, and one low tension wire connecting the cut-out switch used for stopping the engine. The armature of this type of magneto carries… … Fig. 105. Single Cylinder High Tension Bosch Magneto. coil that the high tension current is generated. The timer isconnected directly to the armature shaft, and is an integral pttrtof the magneto. All primary connections are therefore madewithin the magneto. Belts or friction drives cannot be used…
