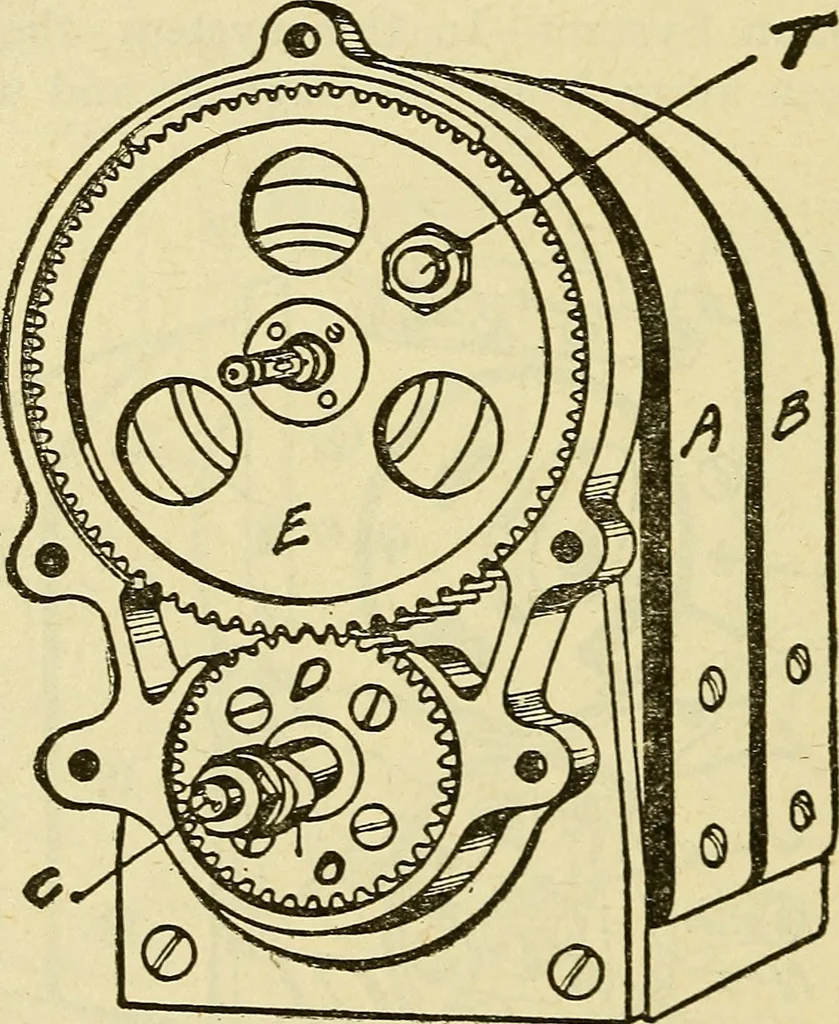

end of the field pieces, the plates being ofsome non-magnetic metal. A front view of the machine isshown in diagrammatic form in Fig. 29. The magnets areshown at A and B, and the armature revolves inside betweenthe ends of these, the end of the armature shaft being seenat C. If we look now at Fig.… … FIG. 30.-THE GEAR WHEELS WHICH OPERATE THE HIGH TENSION DISTRIBUTER. gears with the second wheel E, which is mounted on a secondshaft carried in bearings inside the space formed by thehorse-shoe magnets A, B. The rotation of the magneto ar-mature^ will rotate E at half the speed of the shaft. It…
