Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 262

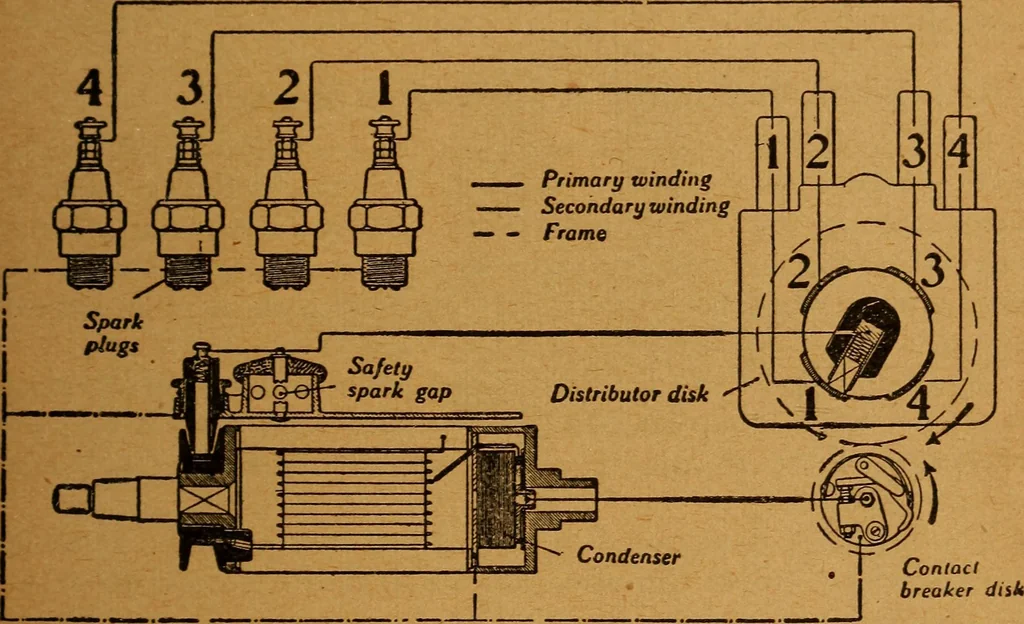

(11). From (10)the current is led through the bridge (12) through the carbonbrush (13) to the distributer brush (15). Metal segments areimbedded in the distributor (16), the number of which corre-sponds to the number of cylinders. As the brush rotates, itmakes consecutive contact with each of the… … Fig. 108. Bosch High Tension Circuit. tributor brush (15) is geared from the armature shaft in sucha way that the armature turns twice for every revolution of thedistributor, when four cylinders are fired, and three times forthe distributors once when six cylinders are fired. The voltage of the…
Internal combustion engines · Traction-engines
