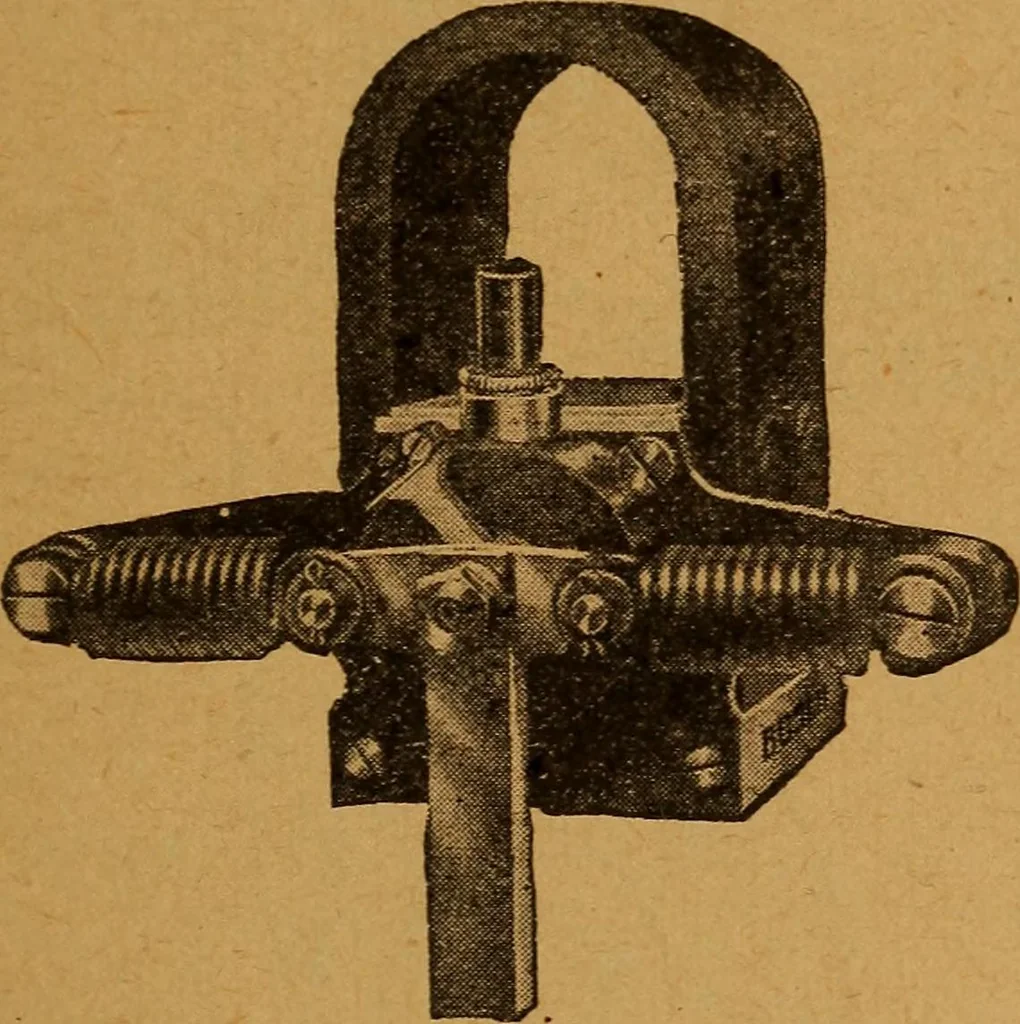

side. Oneof these cams (a) is to be used for starting the motor, or forthe retarded spark position, while the. second (b) is to be usedfor operation, or for the full advance position. These camsare mounted on a sleeve, which may be moved longitudinallyon the shaft, so that the trip lever may be… … Fig. 109. Elevation of Bosch Oscillating Magneto for Slow SpeedEngines. High Tension Type. in the position when the cam (b) is in operation. A stop collaris also provided to limit the movement of the sleeve beyond thisfull advance position. Over this collar is fitted a hand wheel,which, in the…
