Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 296

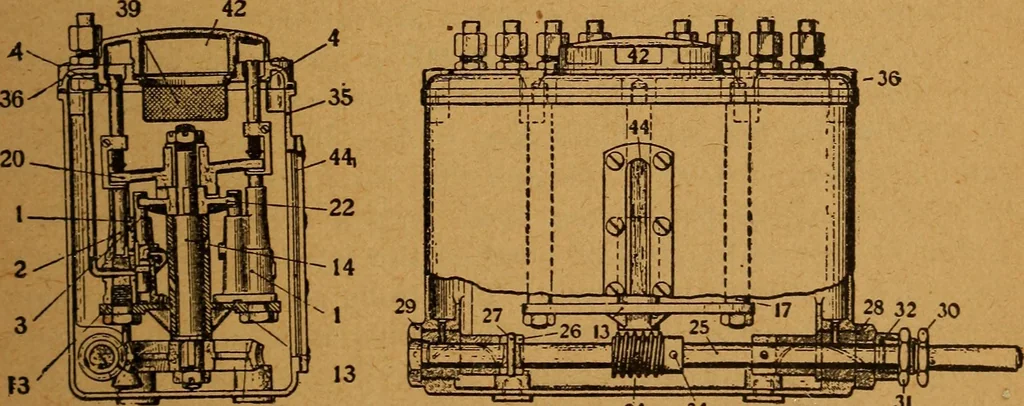

20 ^^ 13 Top View of Bosch Force Feed Oiler,ranged concentrically about the drive shaft in such a mannerthat the pump plungers form a circle around the circle formedby the piston valves. The pump cam disk 20 and the valve cam disk 22 are set onthe drive shaft at other than a right angle with its… … 25 23 » 34 Fig. 121. Cross-Section Bosch Oiler. of the pump plungers and piston valves. The relation of thesecam disks is such that the valve cam disk is 90° in advanceof the plunger cam disk. The valve ca/n disk is solid on thedrive shaft, but the pump cam shaft is Voose and driven througha lug on…
