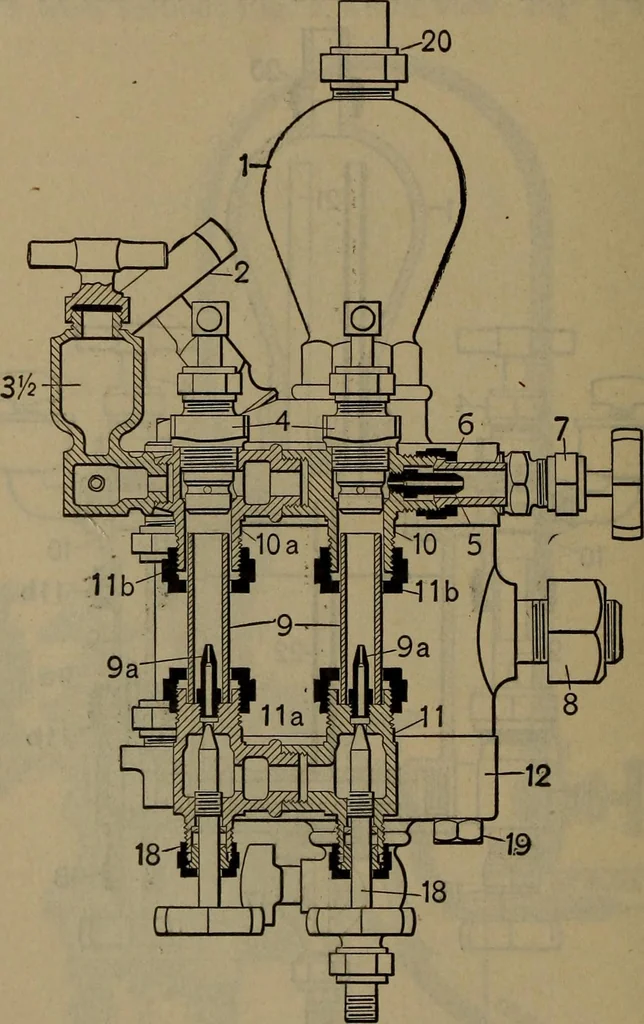

FIG. 1-PLATE 31. connected to a passageway leading to the sight feedglasses. The steam passes through these equalizing tubes andmaintains a uniform pressure on the water in the sight 120 LOCOMOTIVE LUBRICATORS. feed glasses. Any surplus water in.the condenser is freeto pass through the equalizing… … FIG. 2—PLATE 31. is connected with the oil reservoir (Fig. i) through a pas-sage and water-valve 7 and water-tube 23. The lowerend of this tube opens into a pocket in the bottom of theoil reservoir, as shown in Fig. 2. When the water is LOCOMOTIVE LUBRICATORS. 121 drawn off through cock 17, this…
