Practical hand book of gas, oil and steam engines, stationary, marine, traction; gas burners, oil burners, etc.; farm, traction, automobile, locomotive; a simple, practical and comprehensive book on the construction, operation and repair of all kinds of engines (1916)
Rathbun, John B. [from old catalog] · Chicago, Charles C. Thompson co · leaf 372

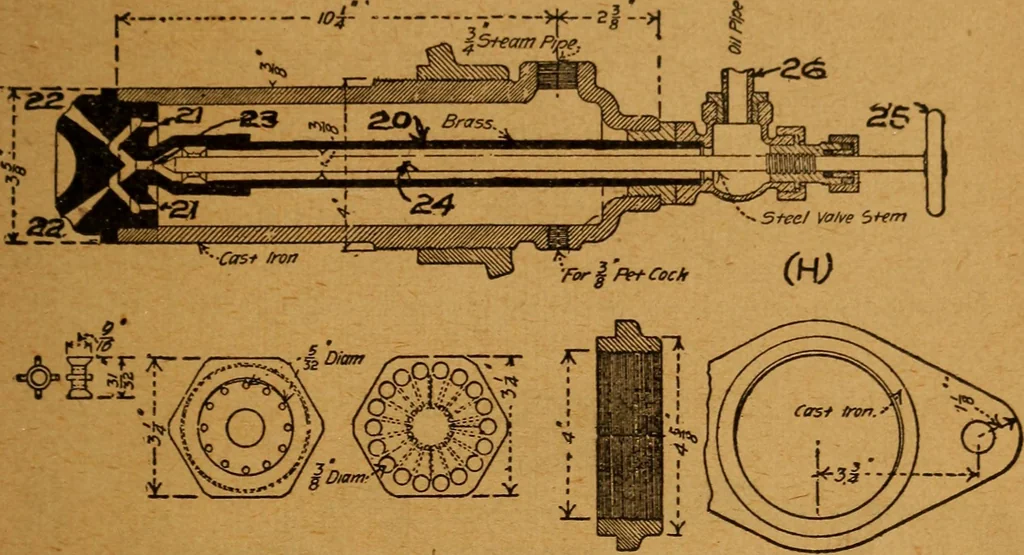

ay thata feed water injector will lift water into the boiler. With thecommercial injector, the position of the steam jet is madeadjustable in relation to the main jet to meet different feedconditions. The steam enters the inner port through the end GAS, OIL AND STEAM ENGINES 367 of the pipe shown… … Fig. H. Lassoe-Lovelsin Burner. which the steam or air issues. As would be expected, theatomization is not as perfect with this burner as with theatomizer or injector type. A burner in which the oil and steam mix before passing outinto the furnace through the final opening is known as a Cham-
Internal combustion engines · Traction-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
