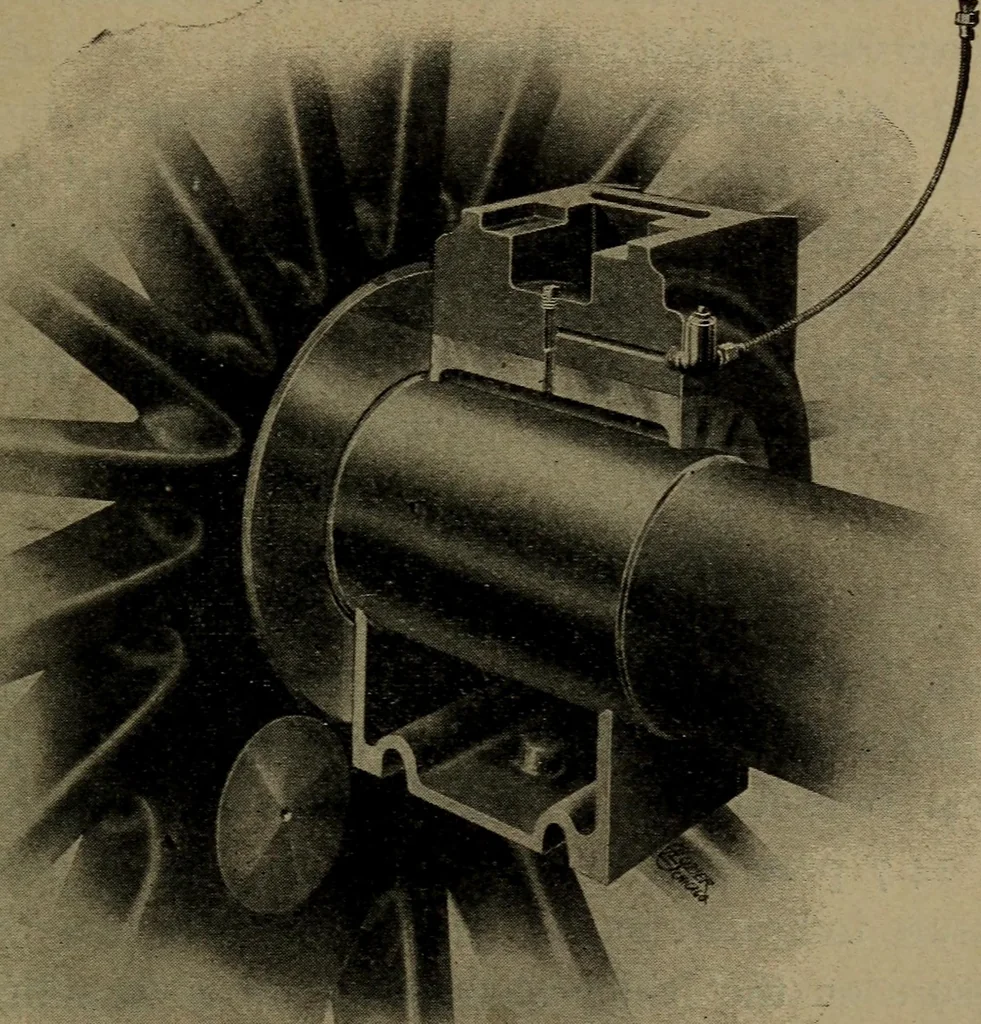

the spring M. Theratchet D is keyed on the miter gear / by the key T andthe whole, as one piece, is mounted loosely on the shaft B.Then the miter gear / meshes with the miter gear /, whichis keyed on the shaft K, which rotates in the gland L.Now as the shaft B moves the pawl lever S in the… … Fig. 31.—How Oil is Applied to the Driving Box with the McCordForce Feed Lubricator. E and G engage the ratchet D and move it in the samedirection. This in turn rotates the miter gear I whichin turn rotates the miter gear / and the shaft K. 110 THE STEAM GAUGE 316. The transformer case is filled…
