Practical instructor and reference book for locomotive firemen and engineers: a practical treatise .. (1916)
Lockhart, Charles F. (Charles Fulton), b. 1872 · New York, The Norman W. Henley publishing co. · leaf 41

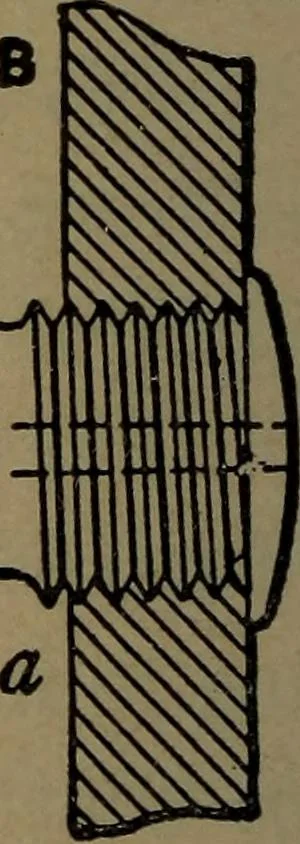

Fig. i.—Stay Bolts. to the lower edge of the fire-box is called the throat sheet.112. The round part extending from the fire-box sectionto the smoke-box is called the barrel. To the lower sideof the smoke-box is attached a spark hopper for cleaningout the sparks that are accumulated by reason of…
Locomotives
